Overview

CHERRY switches and sensors are now ZF Electronics switches and sensors.

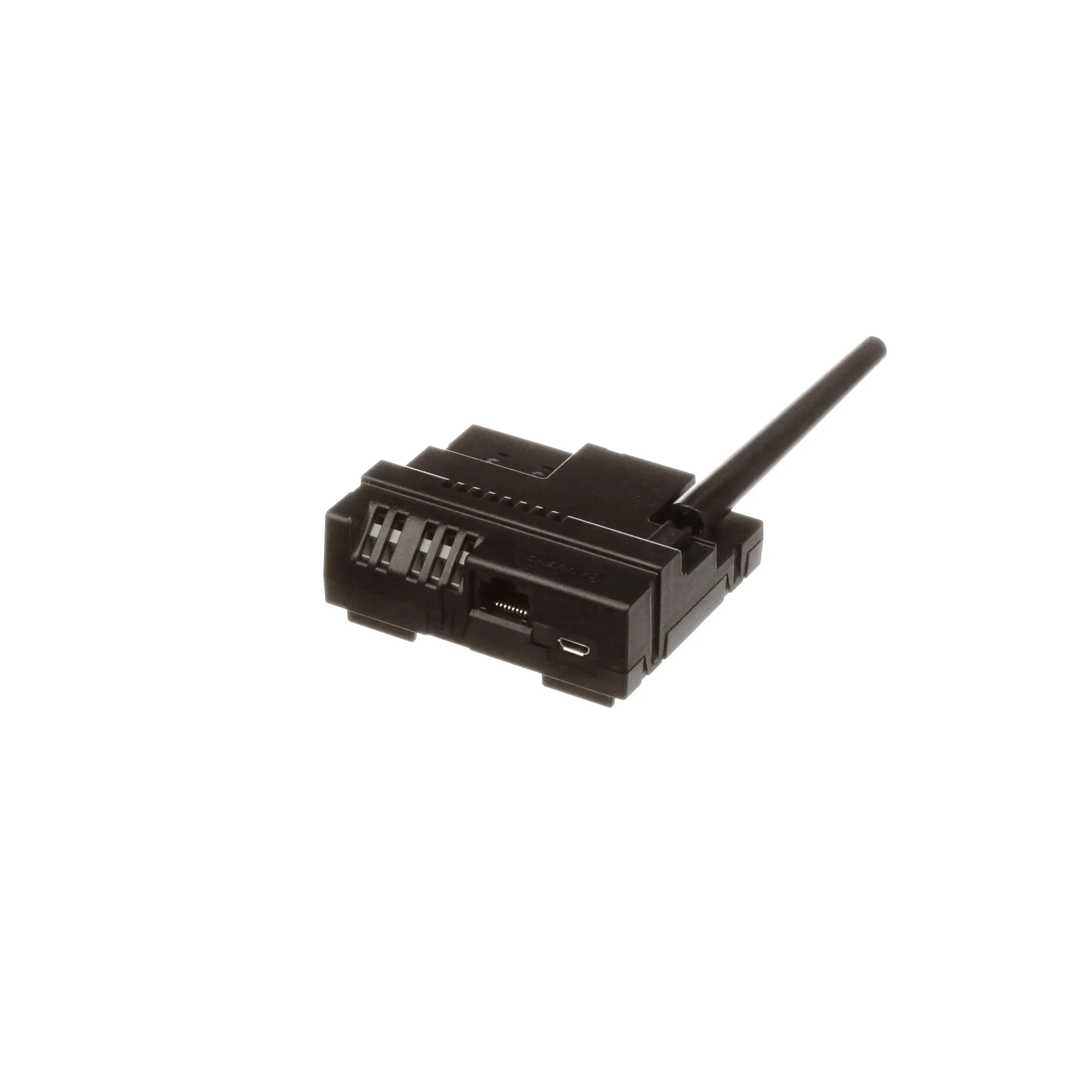

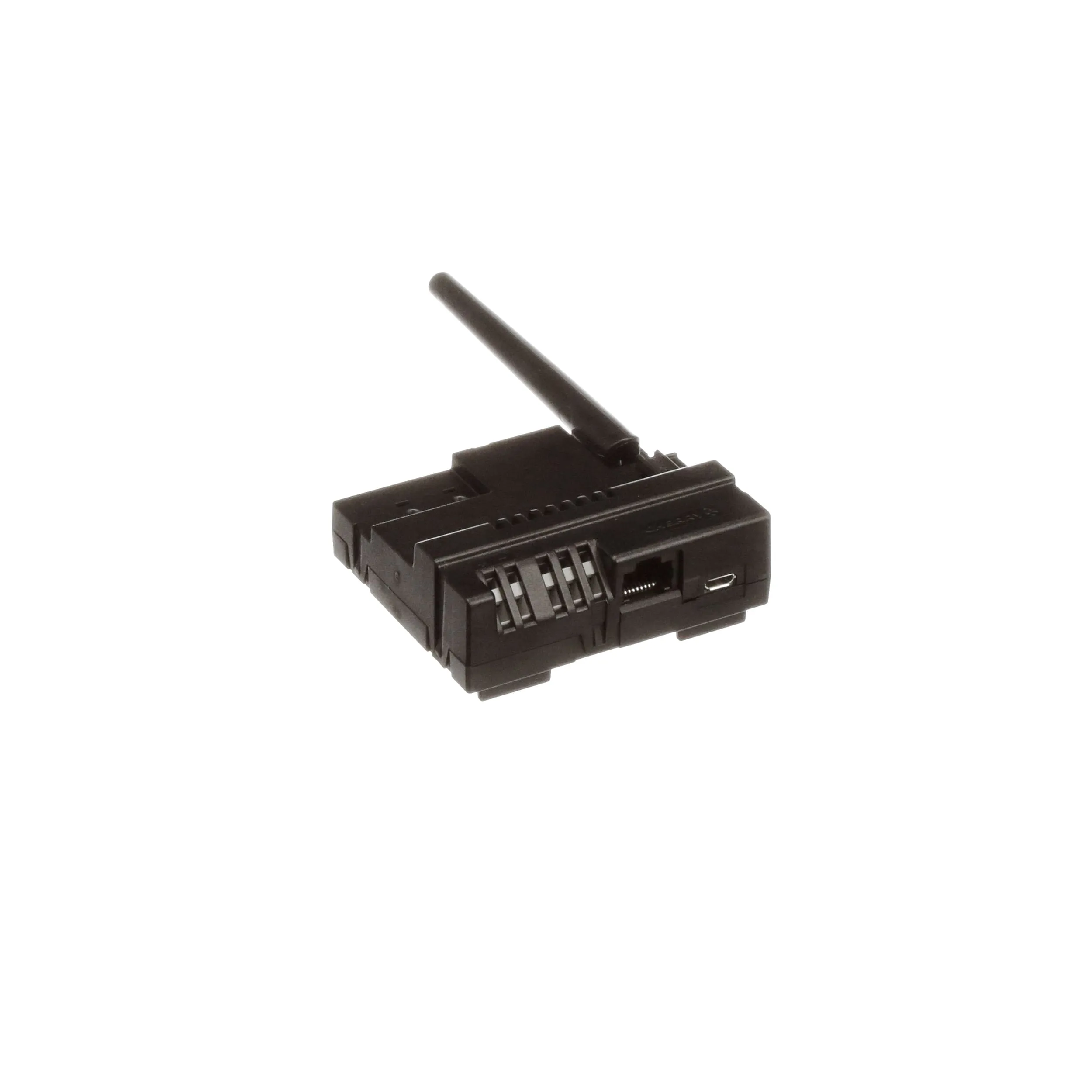

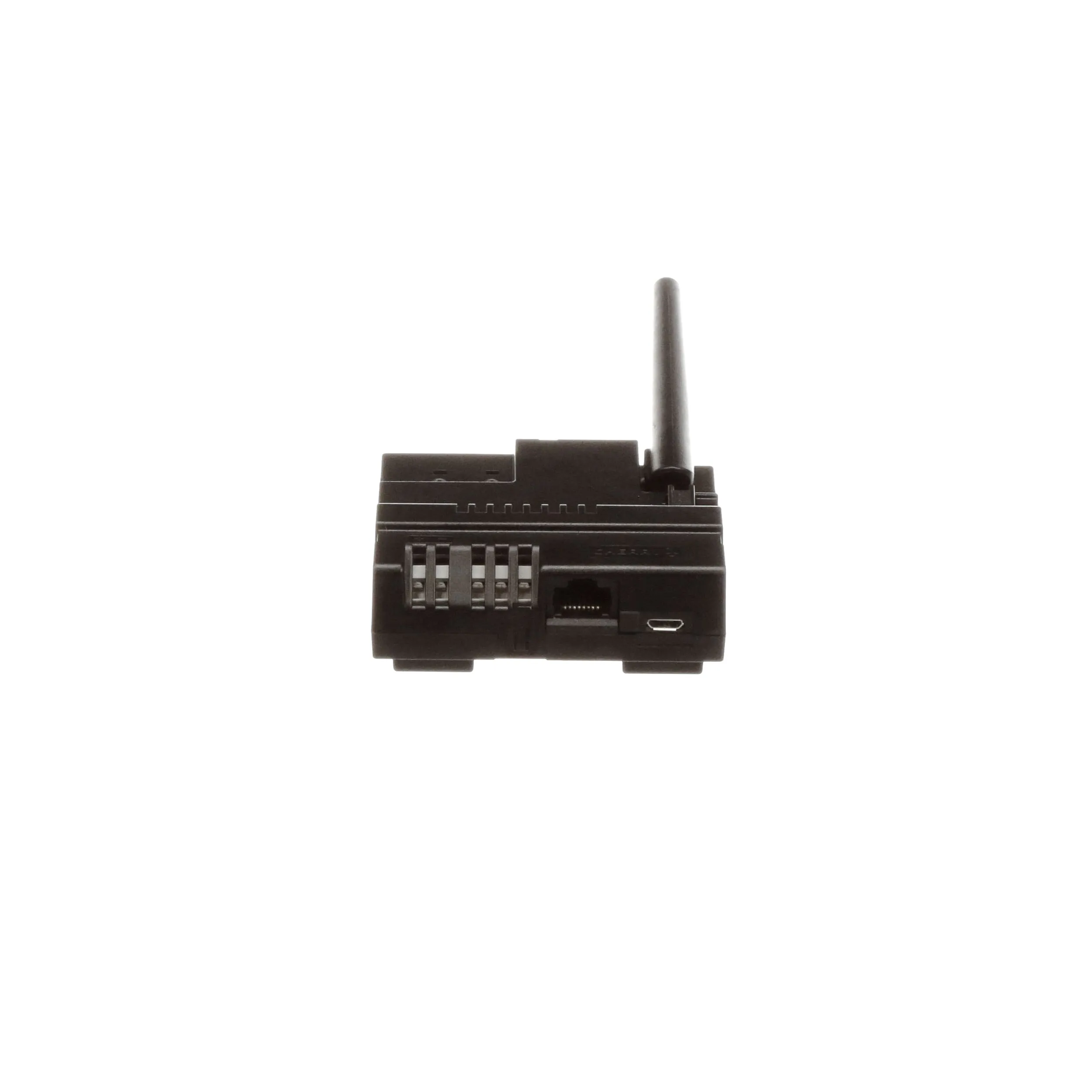

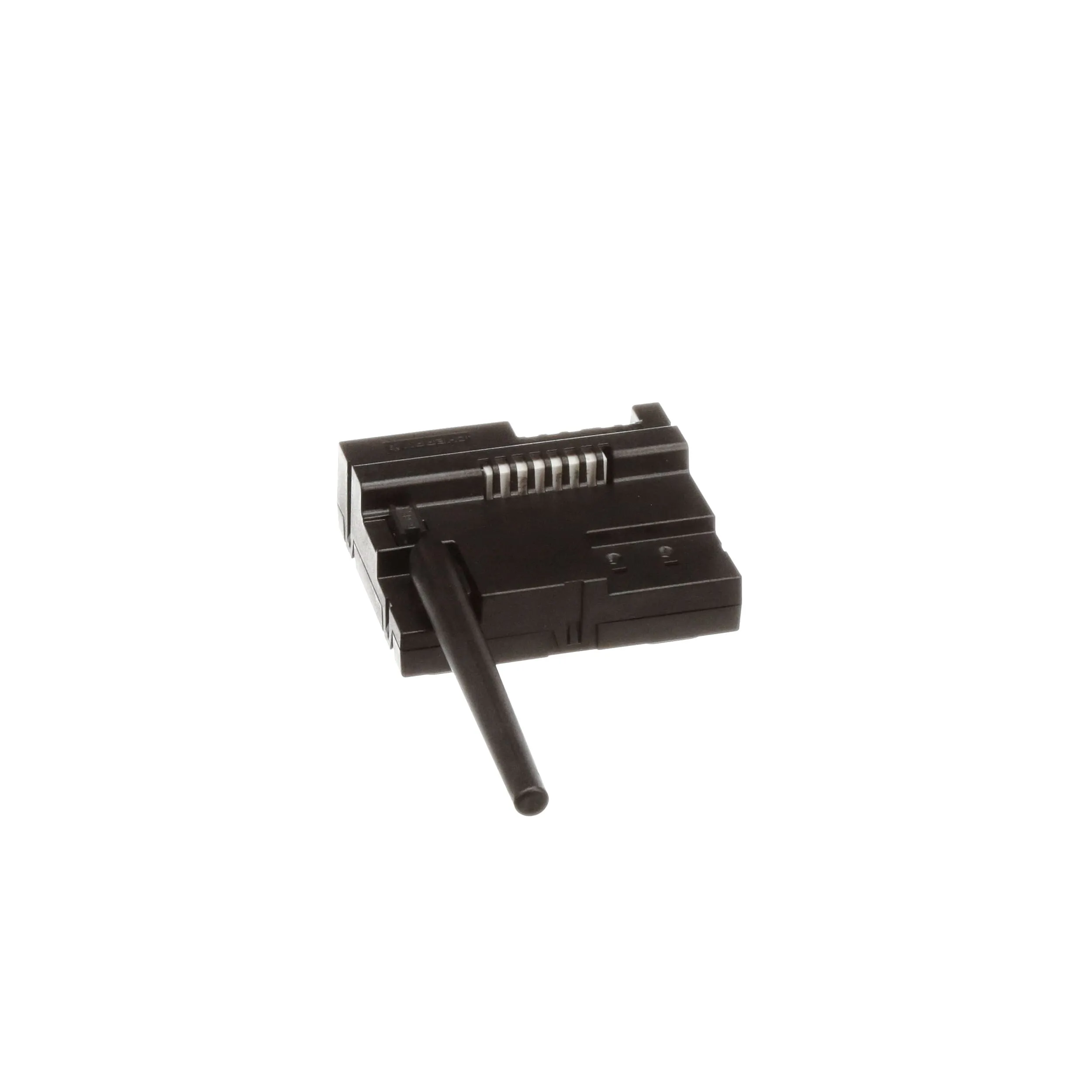

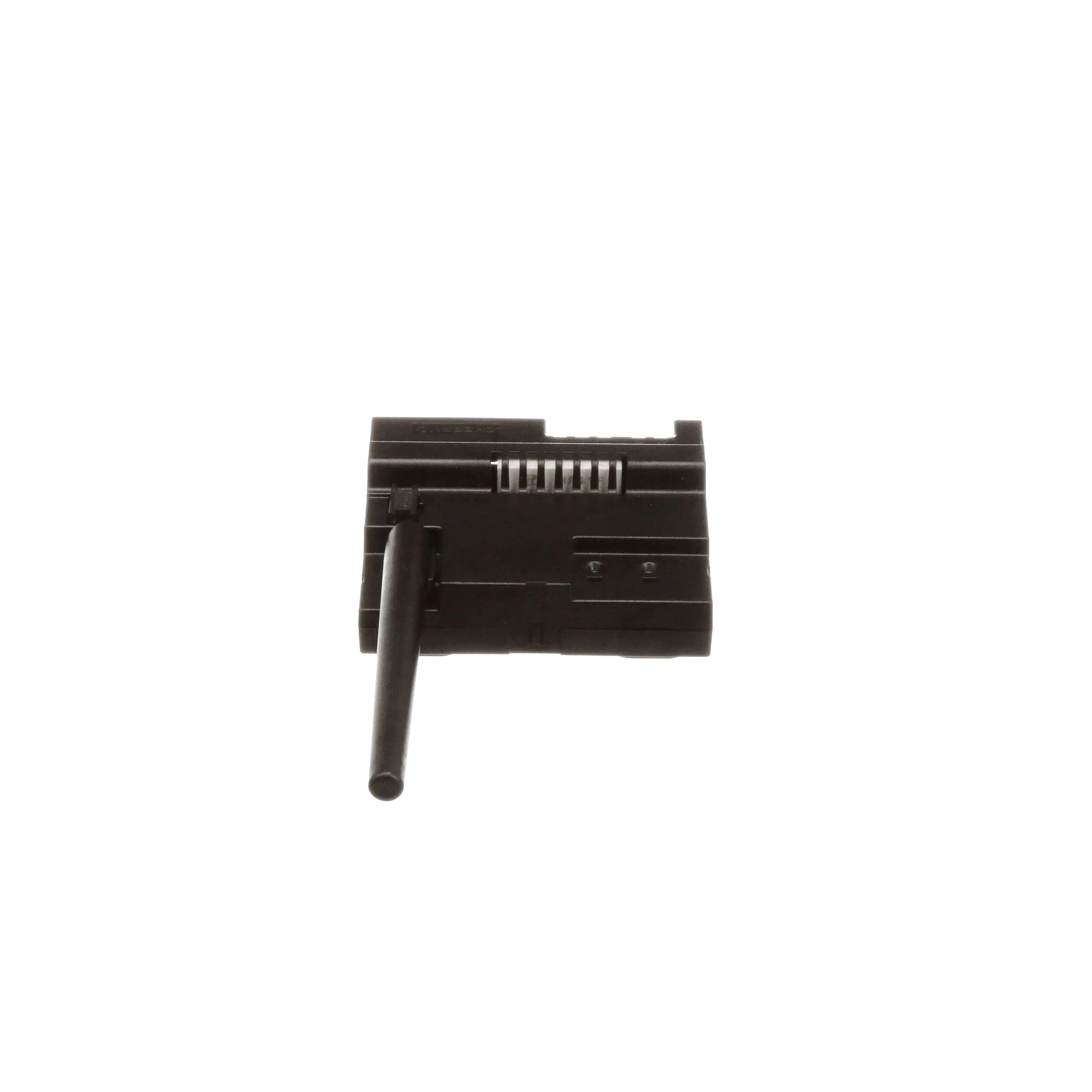

The AFZE receiver module works with our Energy Harvesting wireless switches to receive data transfer via RF technology. The system eliminates the need for complex wire assemblies and increases flexibility for use in previously inaccessible locations.

Flexible pairing allows the operation of several receivers with one switch and vice-versa, and the “Unique ID” excludes mutual interference between different RF switches. The “RF Stamp” receiver module is available as a stand-alone device without the receiver
housing.

Features Typical Applications
Suitable for Wall Mounting
868 MHz and 915 MHz Frequency Bands Allow Global Use Within
Different Applications
Network Compatible
Various Output Options
Building Automation
Industrial Automation
Smart Home

Technical Specifications
Operating Temperature –40° C to 85° C (–40° F to 185° F)
Frequency Bands 868 MHz or 915 MHz
Receiving Sensitivity –95 dBm min.
Receiver Class 2
Operating Voltages
5 VDC Stabilized
7 VDC to 24 VDC Non-Stabilized

Output Interfaces
48 VAC or 230 VAC Relay
RS232 TTL, RS232 or RS485 Bus
Digital Interface or SPI
USB 2.0
