Name: Tronxy Veho 500 Pro Fast 3D Printer Print Size 500x500x500mm
SKU: 286173

Product Details ＋

Large Build Volume

Experience the freedom to create with the Tronxy Veho 500 Pro! With an impressive print size of 500mm x 500mm x 500mm, you can bring your biggest ideas to life without compromising on detail. Whether you're printing intricate designs or massive prototypes, this printer is designed to accommodate all your 3D printing needs.

Blazing Fast Printing Speed

Say goodbye to long wait times! The Veho 500 Pro is capable of high-speed printing at up to 300mm/s. This means you can complete projects faster, maximize productivity, and enjoy a seamless printing experience without sacrificing quality. Speed up your creativity and get ready to impress!

Advanced Klipper Firmware

Unlock the full potential of your 3D printing with the newly upgraded Klipper system. This advanced firmware enhances speed, efficiency, and overall performance, enabling you to control and monitor your prints more effectively. Enjoy features like remote control functionality and improved print precision!

Precision Engineering

The Tronxy Veho 500 Pro employs a CoreXY printing structure and high-speed linear guide rails for superior stability and movement accuracy. With features like automatic XY-axis belt adjustment and robust ball screw transmission systems, experience flawless prints with every use.

Cutting-Edge Ceramic Heating

Equipped with a ceramic heating printing head, experience rapid preheating and enhanced melting capabilities. This technology allows for quick temperature transitions, ensuring you can start printing sooner without compromising quality. Enjoy a smoother and more efficient printing experience!

Built-in Lighting for Enhanced Visibility

Never miss a detail in your prints again! The integrated LED lighting strips illuminate the printing area, allowing you to closely monitor your projects even in dim conditions. This feature enhances your overall 3D printing experience, giving you peace of mind as you watch your creations come to life.

Tronxy Veho 500 Pro Fast 3D Printer 3D Printing FDM Large Print Size Klipper Firmware High Speed Printing CoreXY Structure

Newly Upgraded Klipper

High Speed 300mm/s Fast Printing

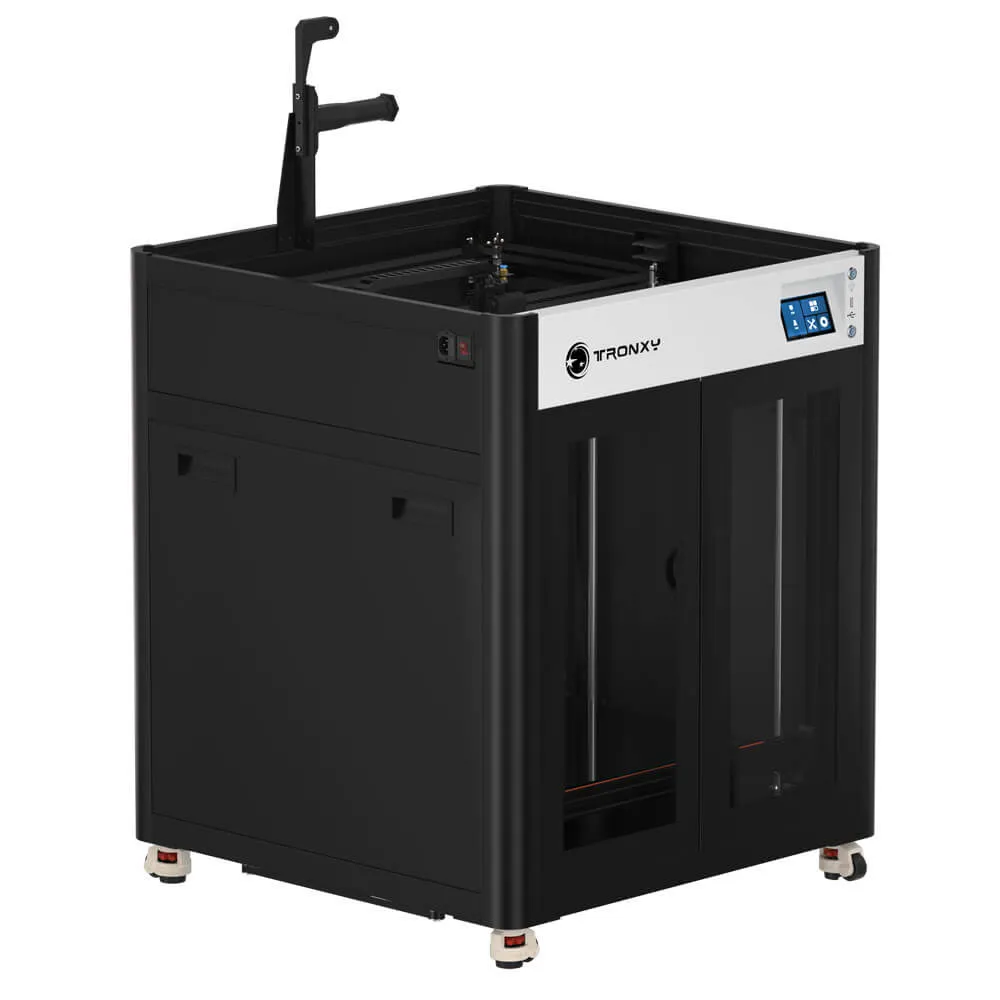

Veho 500 Pro Enclosure

Enclosure Material: Sheet Metal Shell

Unlimited Creativity

● High Speed Printing ● 4 Sets of Z-axis Ball Screws ● Built in Lighting Strip
● Klipper System ● High Speed Linear Guide Rail ● Remote Control
● Direct Drive Extruder ● Ceramic Preheating ● Preheat the Hot Bed Evenly

Tronxy Veho 500 Pro

Using the Klipper system

Can be remotely controlled via LAN

Corexy printing structure

Lightweight Print Head

Ceramic heating printing head

LED strip lighting

Klipper Firmware

Support remote control over local area networks, supports remote control of printing on both PC and mobile phones, enabling printing anytime, anywhere, offline printing can also be achieved through a USB flash drive in offline mode.

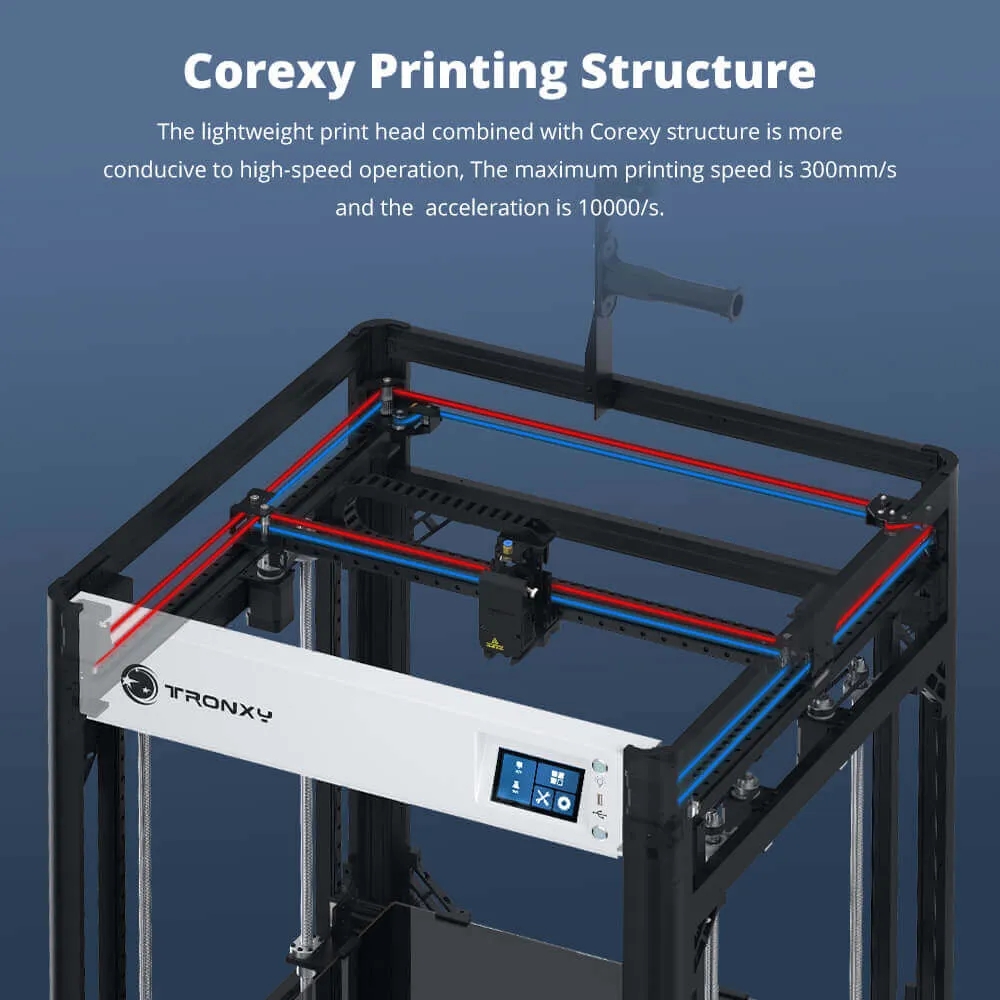

Corexy Printing Structure

The lightweight print head combined with Corexy structure is more conducive to high-speed operation, the maximum printing speed is 300mm/s and the acceleration is 10000/s.

Magnetic Suction Spring Leveling

Magnetic spring leveling, touch platform rebound, automatic leveling is more convenient.

XYZ Linear Guide Rail

The XYZ axis adopts high-speed linear guide rails, which have lower friction and wear compared to traditional methods, making it more conducive to the smooth and high-speed operation of the machine.

The X-axis Adopts a Linear Guide Rail

Smooth and stable high-speed operation

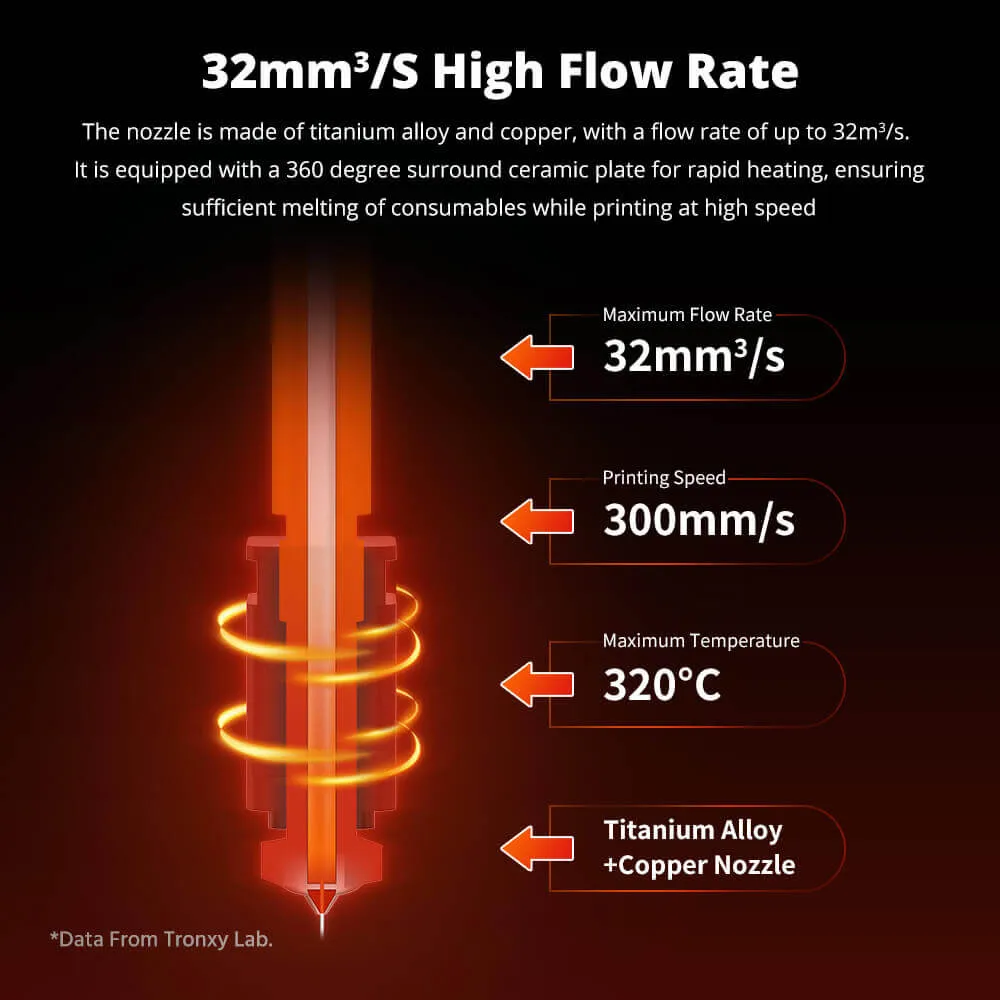

32mm³/S High Flow Rate

The nozzle is made of titanium alloy and copper, with a flow rate of up to 32m3/s. lt is equipped with a 360 degree surround ceramic plate for rapid heating, ensuring sufficient melting of consumables while printing at high speed.
● Maximum Flow Rate: 32mm3/s ● Printing Speed: 300mm/s
● Maximum Temperature: 320°C ● Titanium Alloy: Copper Nozzle

Ceramic Heating Printing Head

The printing head is heated using ceramic sheets, which have a faster heating speed.

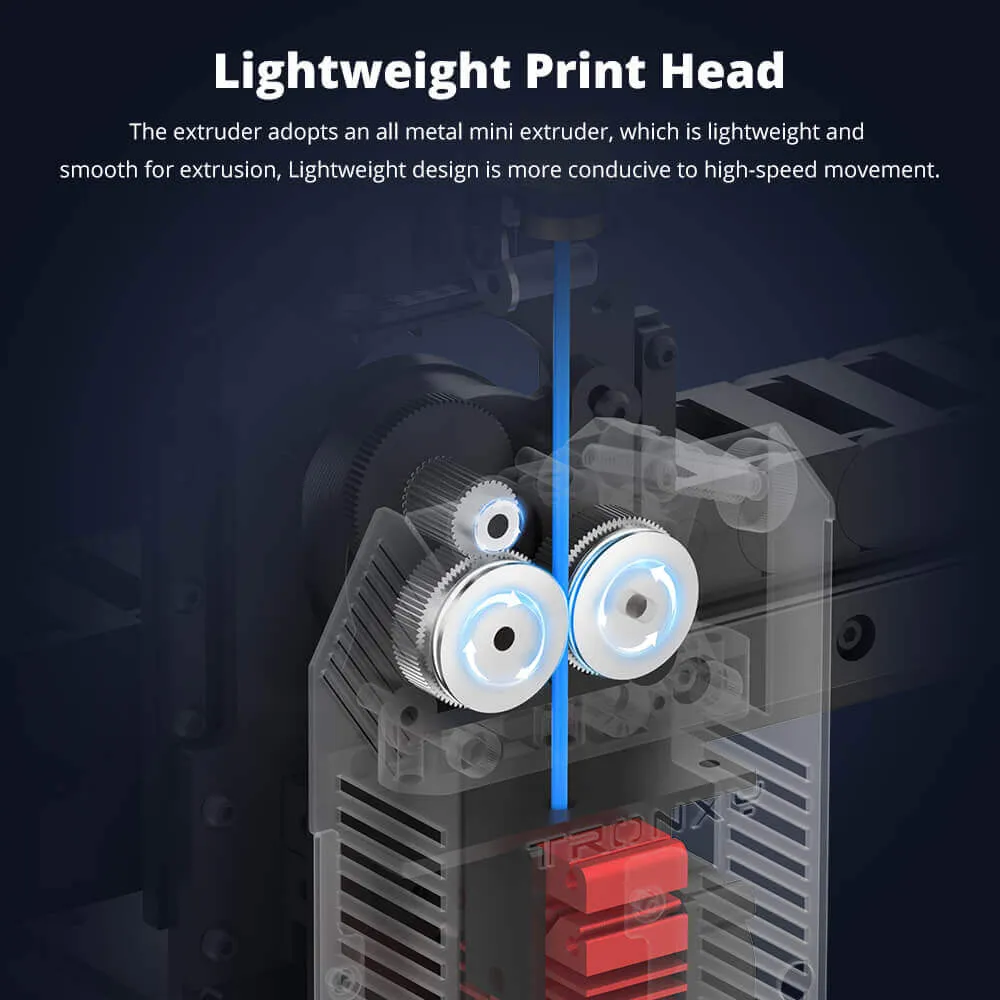

Lightweight Print Head

The extruder adopts an all metal mini extruder, which is lightweight and smooth for extrusion, lightweight design is more conducive to high-speed movement.

With Built-in Lighting

Equipped with LED lighting strips, providing all-round supplementary lighting, you can also clearly observe the printing details when printing in a dim environment.

Automatically Adjust the XY Axis Belt

The X/Y belt adopts spring mechanical thrust, which can automatically adjust the belt tension.

Faster and More Uniform Preheating of the Hot Bed

The preheating of the hot bed adopts AC, with short heating time and uniform heating of each part. Tempered glass platform, smoother and smoother, easier to print.

Standard: Tempered Glass Panel -> Flat, smooth, and have good adhesive properties.

Optional: PEI Steel Plate -> Strong Stickiness, Easy to Model.

Optional: PVC Stickers -> High Temperature Resistance Strong Flexibility.

More Stable and Durable Metal Guide Rails

All guide rails are made of OSG external dual axis metal guide rails, the XYZ axis runs smoother and has a longer lifespan.

Configure Four Ball Screws

The ball screw transmission system is a point contact rolling motion, with low friction resistance, high sensitivity, no vibration during startup, and no crawling phenomenon at low speeds. Therefore, it can precisely control micro feed.

Stronger Motor

The X/Y axis adopts a 42 step high-speed motor, which is strongly driven to ensure more stable printing.

Broken Material Detector

When consumables are detected to be depleted or disconnected, printing can be paused in a timely manner, after inserting consumables, printing can continue.

Adjustable Pulley Foot Pad

Equipped with manually adjustable pulley foot pads for convenient movement of large format 3D printer.
● Raise the foot mat to easily move the machine. ● Lower the foot mat, the machine cannot be moved.

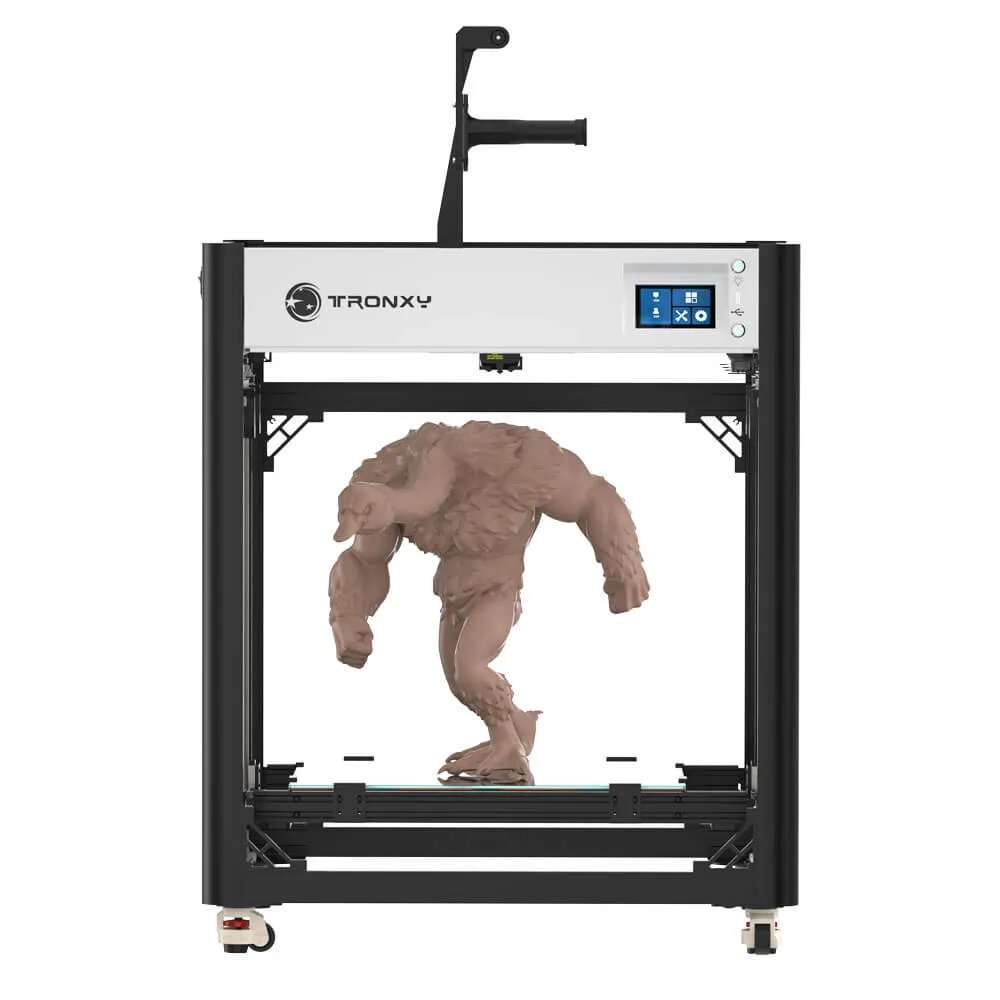

Mechanical Gorilla

Model Size: 408*43*350mm
Printing Layer Thickness: 0.3mm
Printing Speed: 200mm/s
Printing Time: 69 hours

Rabbit Helmet

Model Size: 383*473*224mm
Printing Layer Thickness: 0.3mm
Printing Speed: 200mm/s
Printing Time: 13 hours

Rocket

Model Size: 204*43*268mm
Printing Layer Thickness: 0.3mm
Printing Speed: 200mm/s
Printing Time: 5 hours

Specification:

Printing principle: FDM
Print Size: 500*500*500mm
Movement Speed: 300mm/s
Acceleration: 10000/s² (suggest 150mm/s²)
Print Accuracy: 0.1-0.4mm
Print Principle: FDM (Fused Deposition Molding)
Nozzle Size: Standard 0.6mm (1 free random size)
Nozzle Compatible with: 0.4/0.8/1.0/1.2/1.5/2.0mm
Position Accuracy: X/Y - 0.00625mm, Z - 0.00125mm
Input File Type: STL\OBJ\DAE\AMF\STEP
Slicing Software: Orca Slicer, Prusa, Cura
Connection Method: LAN connection, Ethernet cable, and USB
Power Supply: 24V/240W 50/60HZ
Filaments Support: PLA, TPU, ABS, Wood, PC, HIPS, Wooden filament etc.
Nozzle Temp 300℃ (MAX)
Machine Size: 740*740*895mm
Machine weight: ≈ 45kg
Package A Weight ≈ 24.60KG
Package A Size: 785*672*205mm
Package B Weight ≈ 27.50KG
Package B Size: 995*302*370mm

More about Veho 500 Pro

Q: What is the print size of the Tronxy Veho 500 Pro?
A: The Tronxy Veho 500 Pro can print objects that are 500 millimeters wide, 500 millimeters deep, and 500 millimeters tall. This means it has a big area for making large and detailed designs!
Q: How fast can I print with the Tronxy Veho 500 Pro?
A: This 3D printer is really fast! It can print at a speed of up to 300 millimeters per second, which means your projects can be completed quicker than many other printers. It's great for making things in a hurry!
Q: What materials can I use with this printer?
A: You can use different kinds of materials with the Tronxy Veho 500 Pro. It works well with PLA, ABS, TPU, and many other types of filaments. This variety allows you to create everything from toys to functional parts.
Q: Do I need any special software to use the printer?
A: Yes, to prepare your models for printing, you need slicing software. The Tronxy Veho 500 Pro recommends using Orca Slicer, but you can also use other options like Cura or Prusa, which are friendly for beginners.
Q: Is it easy to level the printer for a good first print?
A: Yes! The Tronxy Veho 500 Pro has a cool automatic leveling system. This means it helps you adjust the print bed automatically, making it easier for you to start printing without worrying too much about setup.
Q: Can I control the printer with my phone?
A: Absolutely! You can control the Tronxy Veho 500 Pro remotely through a local area network, so you can start, stop, or check on your prints without needing to be right next to the printer.
Q: What is the maximum temperature the nozzle can reach?
A: The nozzle of the Tronxy Veho 500 Pro can heat up to a maximum of 320 degrees Celsius. This high temperature allows you to use a wide range of materials for printing.
Q: How heavy is the printer?
A: The Tronxy Veho 500 Pro weighs about 45 kilograms. While it’s a bit heavy, this weight helps keep the printer steady during printing, which is good for getting high-quality results.
Q: What if I run out of filament while printing?
A: There's no need to worry! The printer has a built-in sensor that can detect when the filament runs out. It will pause your print, and you can just add more filament and continue printing.
Q: Is there a warranty for the Tronxy Veho 500 Pro?
A: Yes, most purchases come with a warranty that covers certain issues. It’s always a good idea to check the warranty details when you buy the printer, so you understand what is covered.
