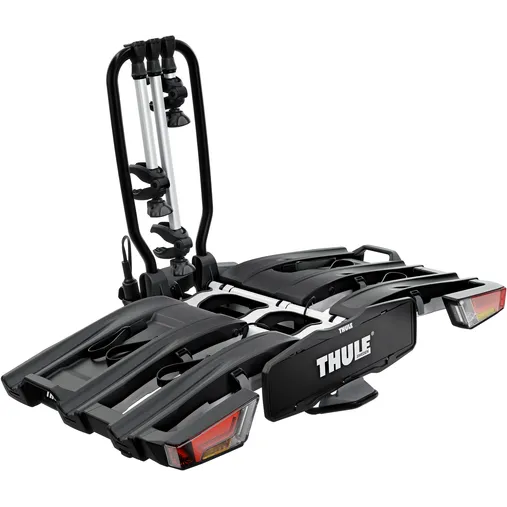

Features

• Fully foldable for convenient mounting, handling and storage
• High load capacity enabling transport of e-bikes and heavy mountain bikes

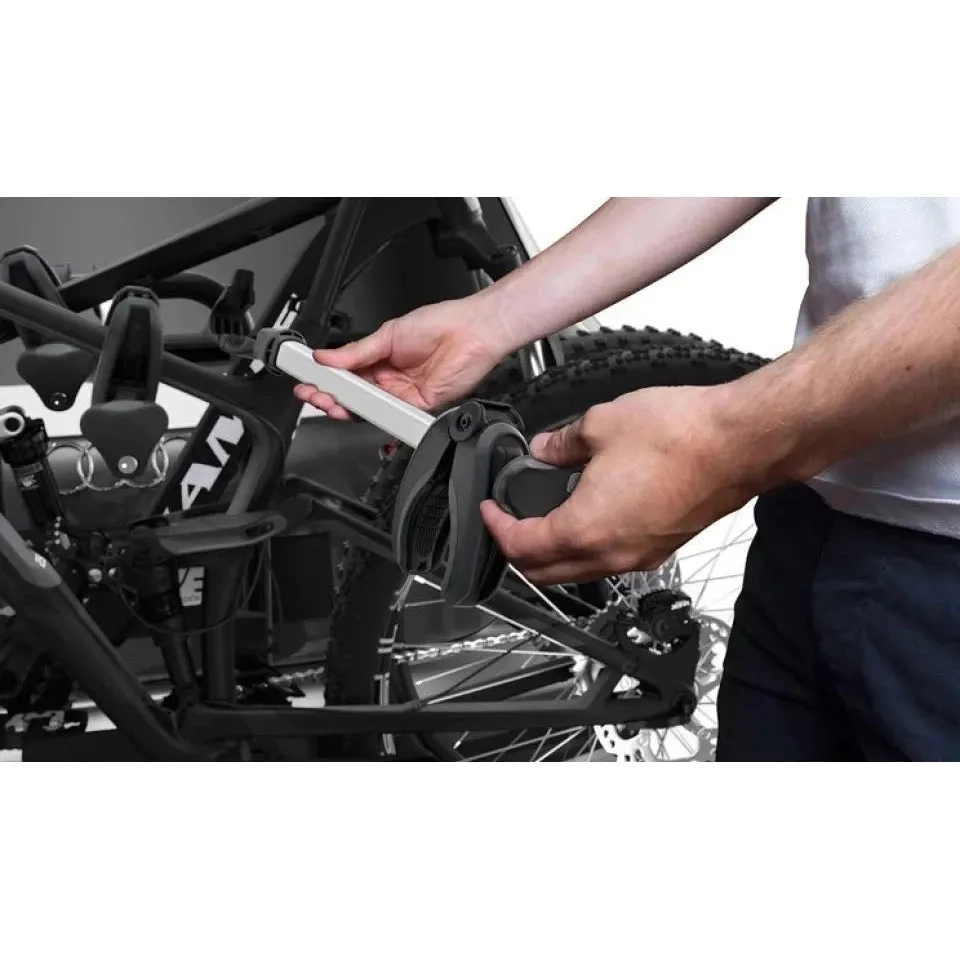

• Easy mounting of bikes through detachable bike arms with lockable Thule AcuTight torque limiter knobs that “click” when optimal torque is reached
• Large distance between wheel holders enabling transport of sturdy bikes with large wheel bases

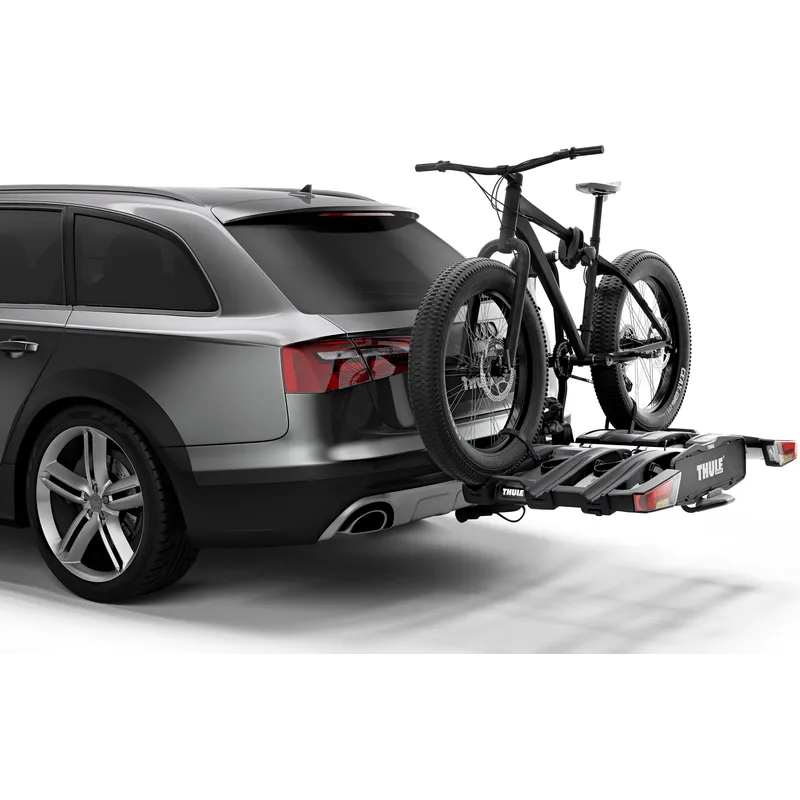

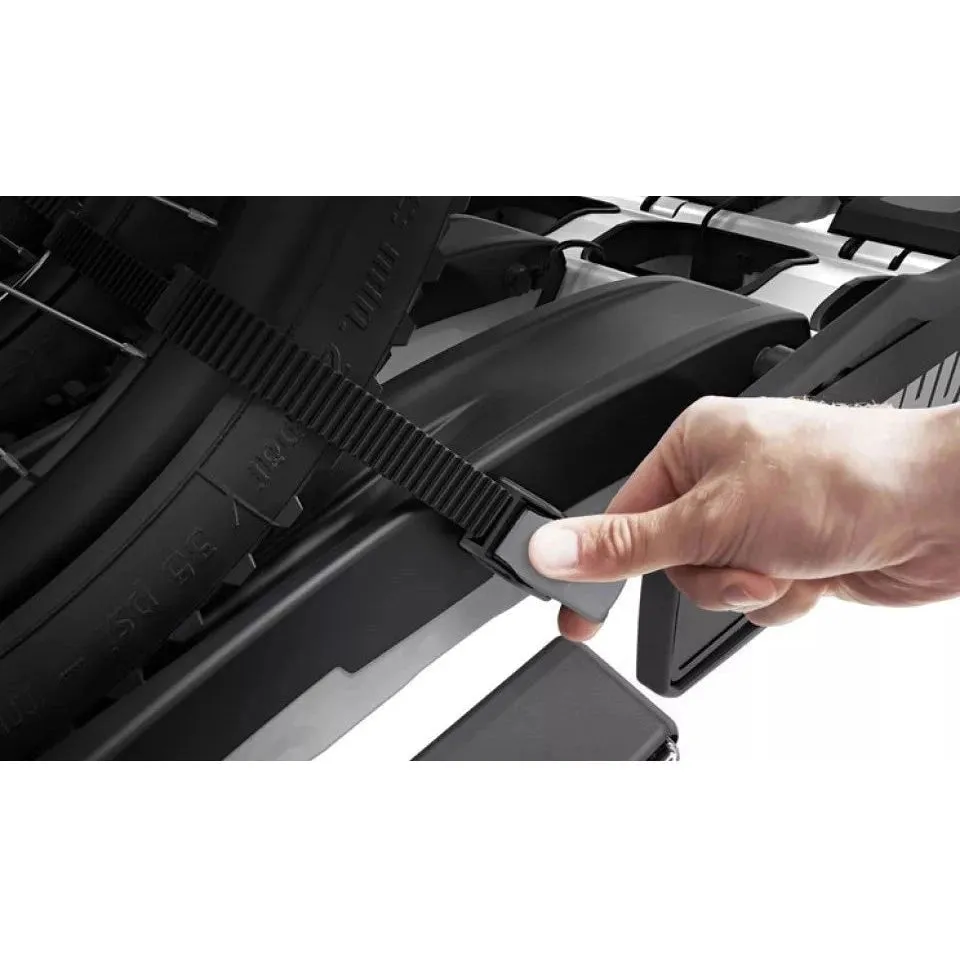

• Adjustable pump buckles with extra-long wheel straps for easy fastening of wheels (up to 4.7" wheels) enabling transport of fat bikes

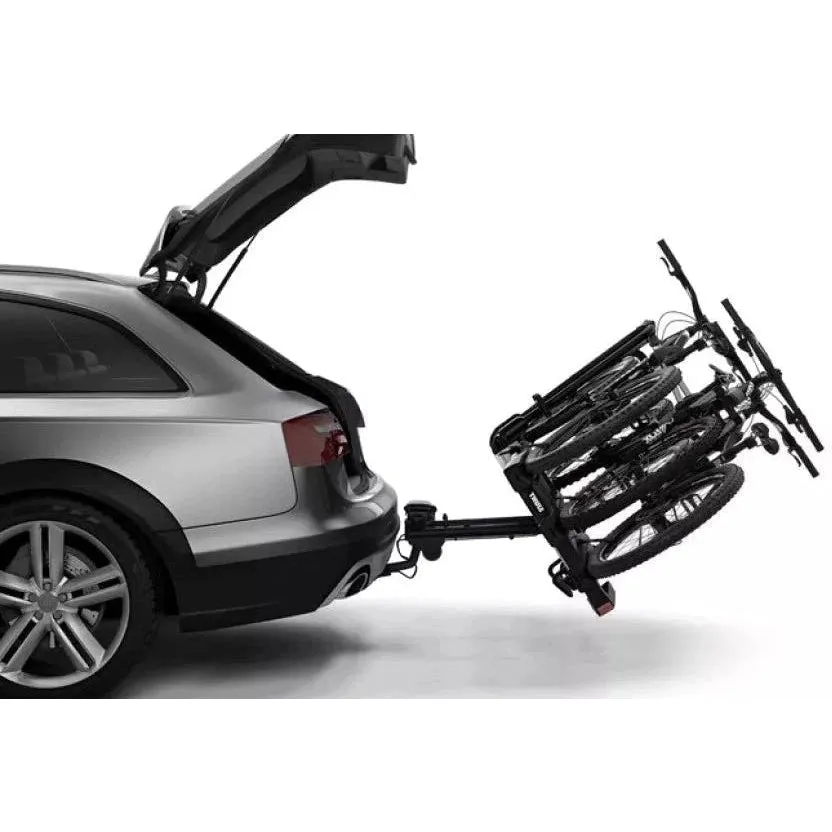

• Easy trunk access even with bikes mounted, thanks to smart foot pedal tilt
• Wide tilt angle allows opening of even very large rear doors - even with bikes mounted. We recommend test fitting on tall vans to confirm clearance
• Easy mounting and adjustment of the bike rack before closing the tightening handle, thanks to the towbar coupling’s initial stability

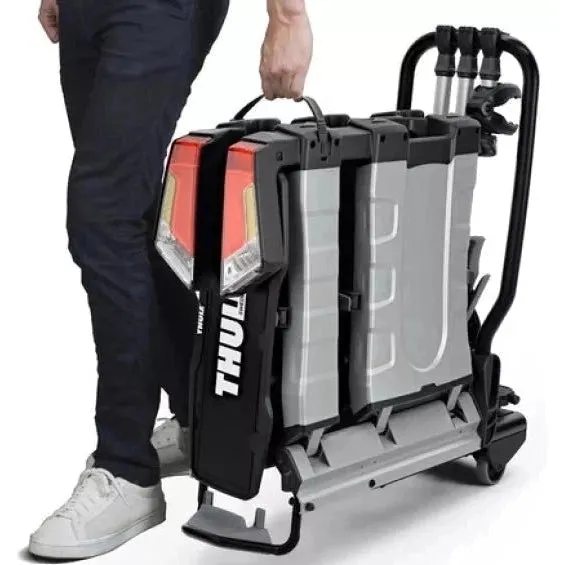

• Ergonomic transport of the bike rack thanks to the integrated transport wheels and carrying handle
• Pre-assembled, no tools required
• Lock your bikes to the bike rack and your bike rack to the towbar (locks included)
• 50mm ISO compliant towballs only. Does not fit 1⅞, 2” or convert-a-ball type
• Fitted with NZ flat 7 pin trailer wiring plug

Technical Specifications:

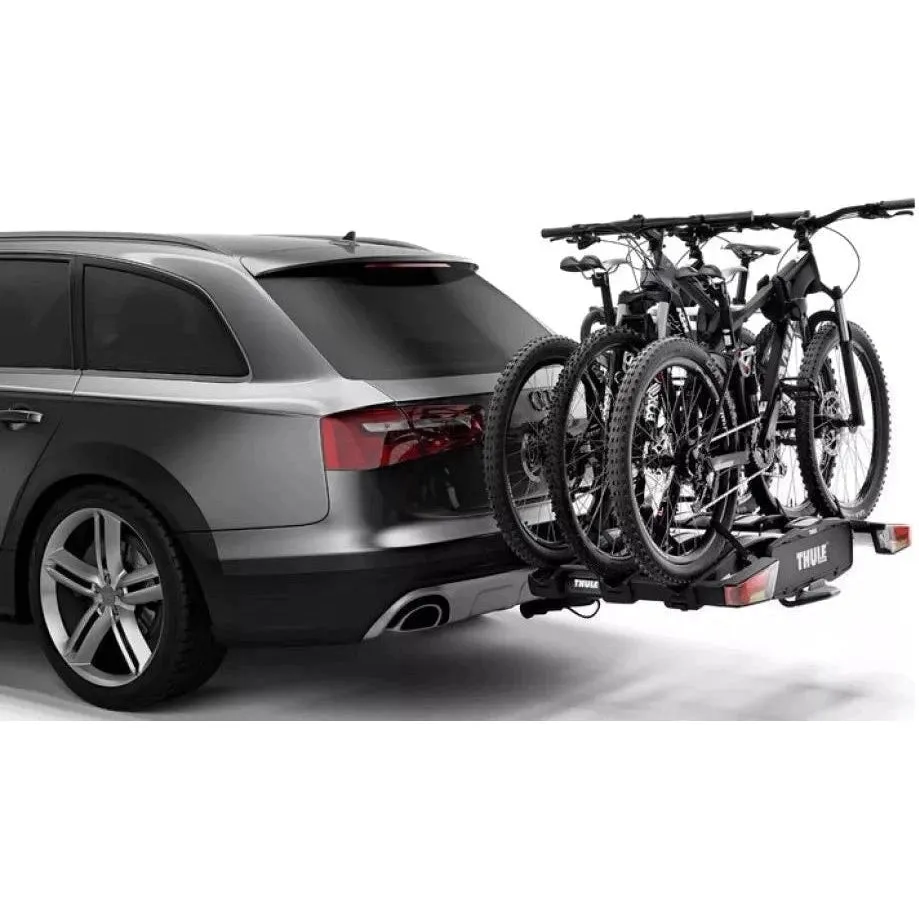

Max number of bikes 3
Load capacity 60 kg
Max bike weight 30 kg
Dimensions 123 x 83 x 86 cm

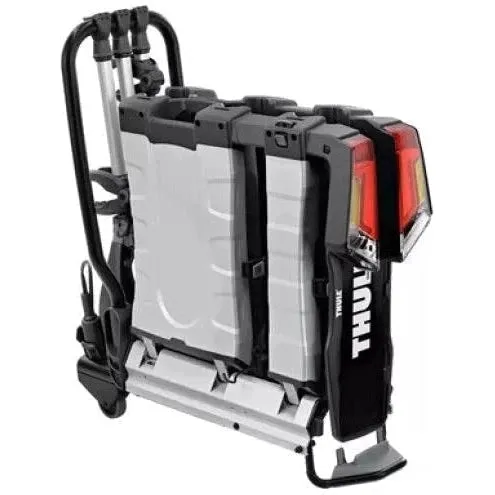

Folded dimensions 31 x 83 x 86 cm
Weight 23.1 kg
Fits frame dimensions 22-80 mm
Detachable frame holders √
Distance between bikes 22/19 cm
Wheel mounting on adjustable holders Pump buckles
Tilt function (with bikes) √
Fits cars with exterior spare tyre ×

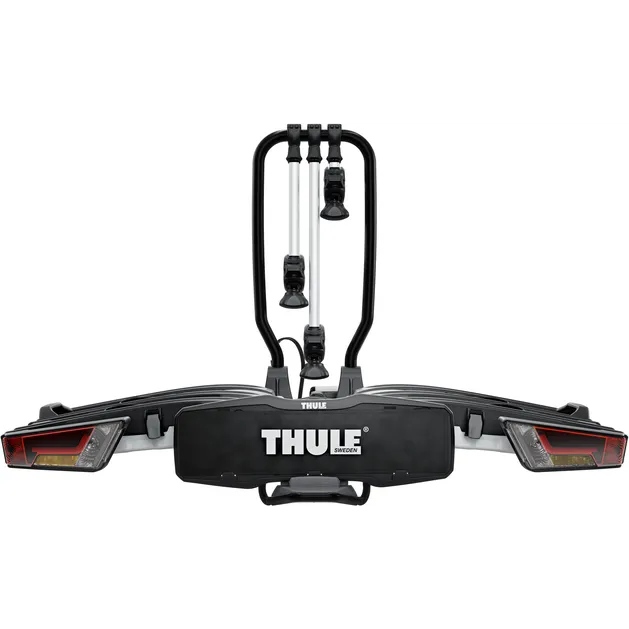

Rear lights √
Power connector 7-pin
One Key System compatible √
Lockable bike-to-rack √
Lockable rack-to-vehicle √
Loading ramp × not included available as an extra 9334
Model number 934
