The Sonesse® 40 range is putting window coverings in motion with quiet precision. Ideal for variety of interior window covering applications.

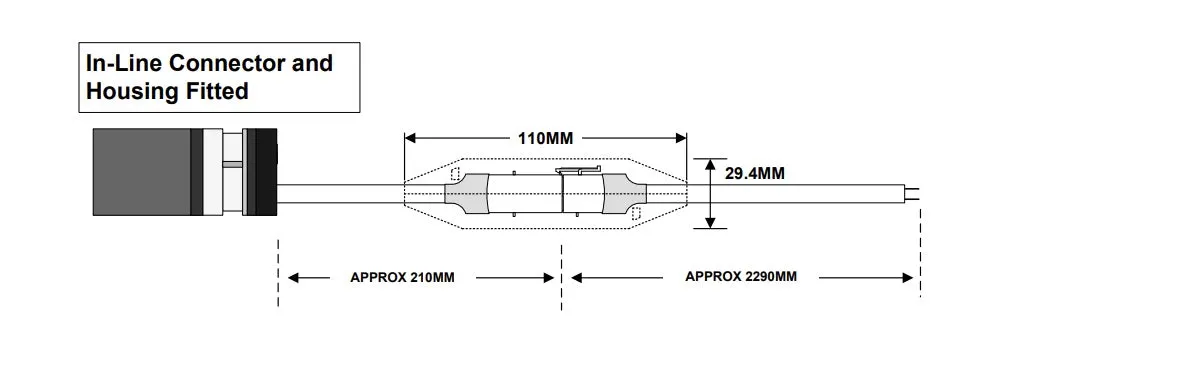

Comes with a 3 meter inline connector to make servicing the motor much easier.
Support
Technical Information
END PRODUCT
|
| End product type |
Roller blinds, Roman blinds, Venetian blinds |
TECHNOLOGY
|
| Radio Frequency |
433,42 MHz |
| Capacity of memory |
12 different codes plus 3 wireless sensors |
| Coding |
Rolling code 16 million of possibilities |
ELECTRICAL
|
| Antenna |
Integrated |
| Consumption during operation |
120 W |
| Minimum voltage |
207 V |
| Maximum Voltage |
253 V |
| Nominal Voltage / Frequency |
230V AC 50 Hz |
| Rated current |
0.98 A |
MECHANICAL
|
| Nominal Torque |
9 Nm |
| Type of limit switch unit |
Electronic |

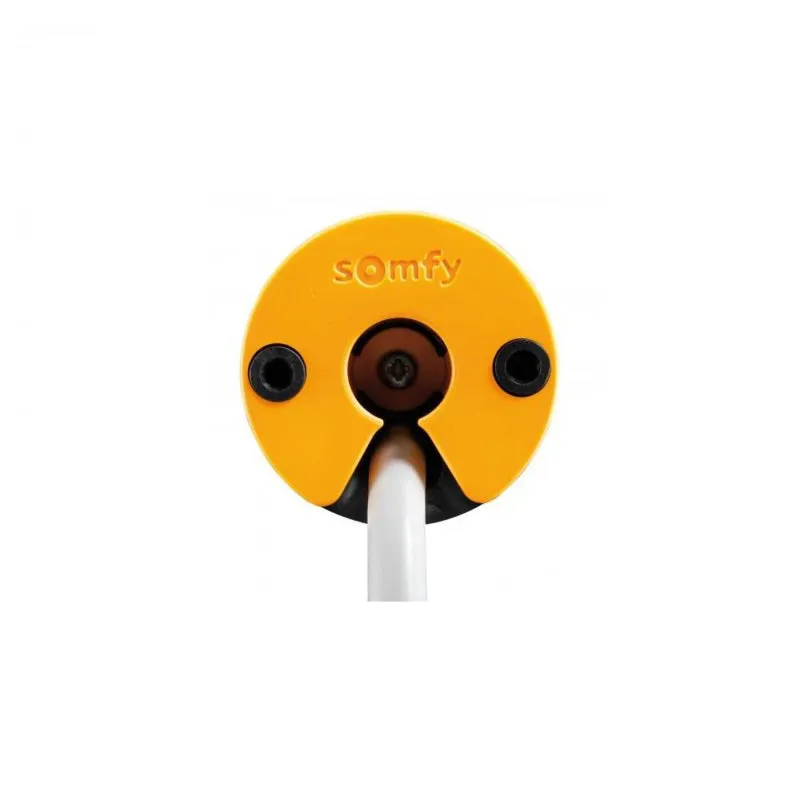

| Type of head |
Round |
| Nominal Speed |
12 rpm |
| Capacity of the limit switch unit |
250 turns |
STANDARD
|
| Approval |
RCM |
| Insulation class |
Class II |
| Protection Index |
IP44 |
CABLE
|
| Number of wires of the cable |
2 |
| Wire section |
0.75 mm² |
| Plug in cable |
Inline Connector V2 |
| Cable type |
PVC |
| Color |
White |
| Wire Length |
3 m |
DIMENSION
|
| Overall length (L3) |
548 mm |
| Riveting position distance (L2) |
511 mm |
| Weight |
1.35 Kg |
| Length (L1) |
535 mm |
OTHER
|
| Thermal time |
4 mn |
| Noise level (according to Somfy measures) |
40 dBA |
| Working temperature |
0-60 °C |
