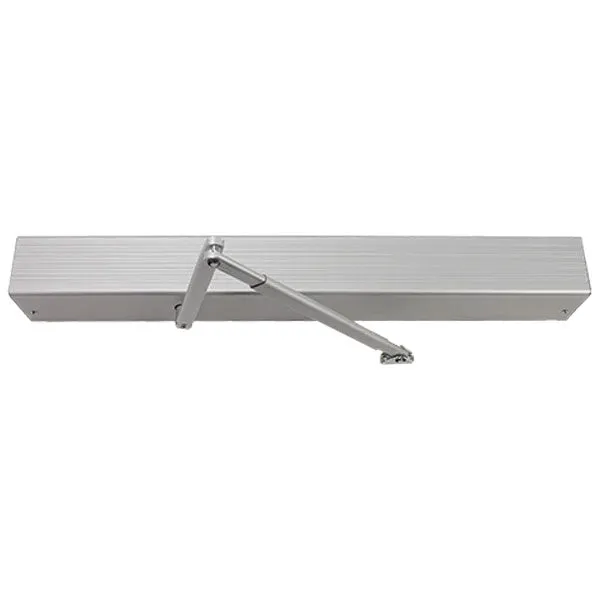

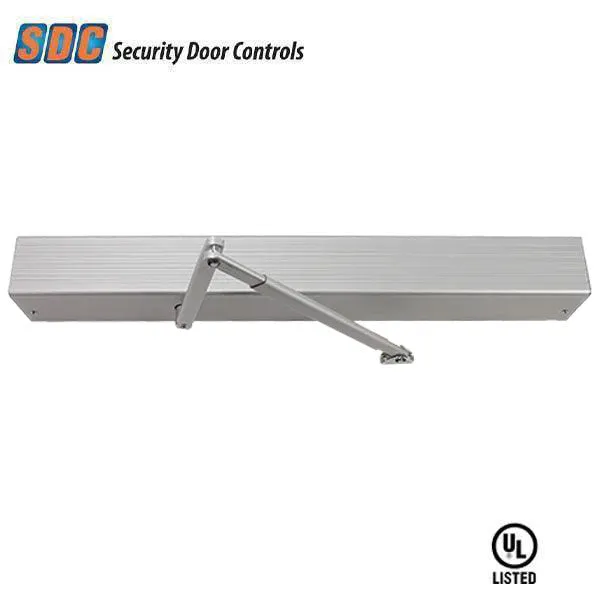

Automatic low-energy swing door operators are designed for applications requiring ADA compliance or user convenience. SDC’s operator is built with a state-of-the-art microprocessor-based unit that is self-tuning and self-learning while offering nonhanded operation, full-mechanical stops and a variety of interface options for sensors, push plates, fire alarms and electrified locks. SDC’s operator is belt-driven with a combination of gears and pulleys which requires less torque, less power, absorbs more abuse, and is quieter than other automatic door openers while complying with all US and Canadian ADA requirements. Onboard diagnostics simplifies troubleshooting for ease of installation and all SDC operators can be easliy configured for surface-mounted push/pull applications. ANSI certified not required for initial installation.
Features:
- Single Button, Self-Tuning Setup
- Extremely Quiet Operation
- Momentary Back Pressure Relief
- Obstruction Detection
- Power Close Option
- Hold-Open Timer
- External Function Switches
- Built-in 1 Amp Power Supply
- On-board Lock Sequencing
- Preset Dip Switches for Alternative Functions
- Customizable Programming for System Design
- USB Port to Easily Upload Customized Programming
- Non-Handed
- Push or Pull Compatible
- Spindles Included
- High Traffic Use
| Power Supply | 115VAC @ 60Hz (±6%, -10%) | |
|---|---|---|
| Power Consumption | 100W | |
| Current Consumption | 1 Amp | |
| Motor | 24 VDC Permanent Magnet with Belt Driven Encoder | |
| Header Dimension | 4½" H x 4⅞" D | |
| Fused Protection | 3.5 Amp Fuse (F1 located on I/O Board) | |
| Weight | 22 lbs per Operator Assembly | |
| Ambient Operating Temperature | -4 to 131°F | |
| Ingress Protection | IP23 - protection from spray water up to 60° from the vertical - i.e. Rainstorm | |
| Maximum Door Weight | PUSH Arm | PULL Arm |
| 36" Door: | 438 lbs | 342 lbs |
| 42" Door: | 328 lbs | 256 lbs |
| 48" Door: | 254 lbs | 198 lbs |
| Accessory / Lock Power Supply | 24 VDC / 1 Amp | |
| Adjustable Timers | Hold Open Time, Opening & Closing Speed | |
| Standard Selector Switch Function | Automatic, Hold Open, Manual (Off) | |
| Standard Control Outputs | Electric Lock Control, 24 VDC Power Supply, Door Status (Fully Open & Fully Closed), Alarm Signal | |
| Standard Control Inputs | Interior Activation, Exterior Activation, Emergency Shutdown, Fire Alarm Input, Safety Device Input | |
| Maximum Degree of Opening | 130 degrees | |
