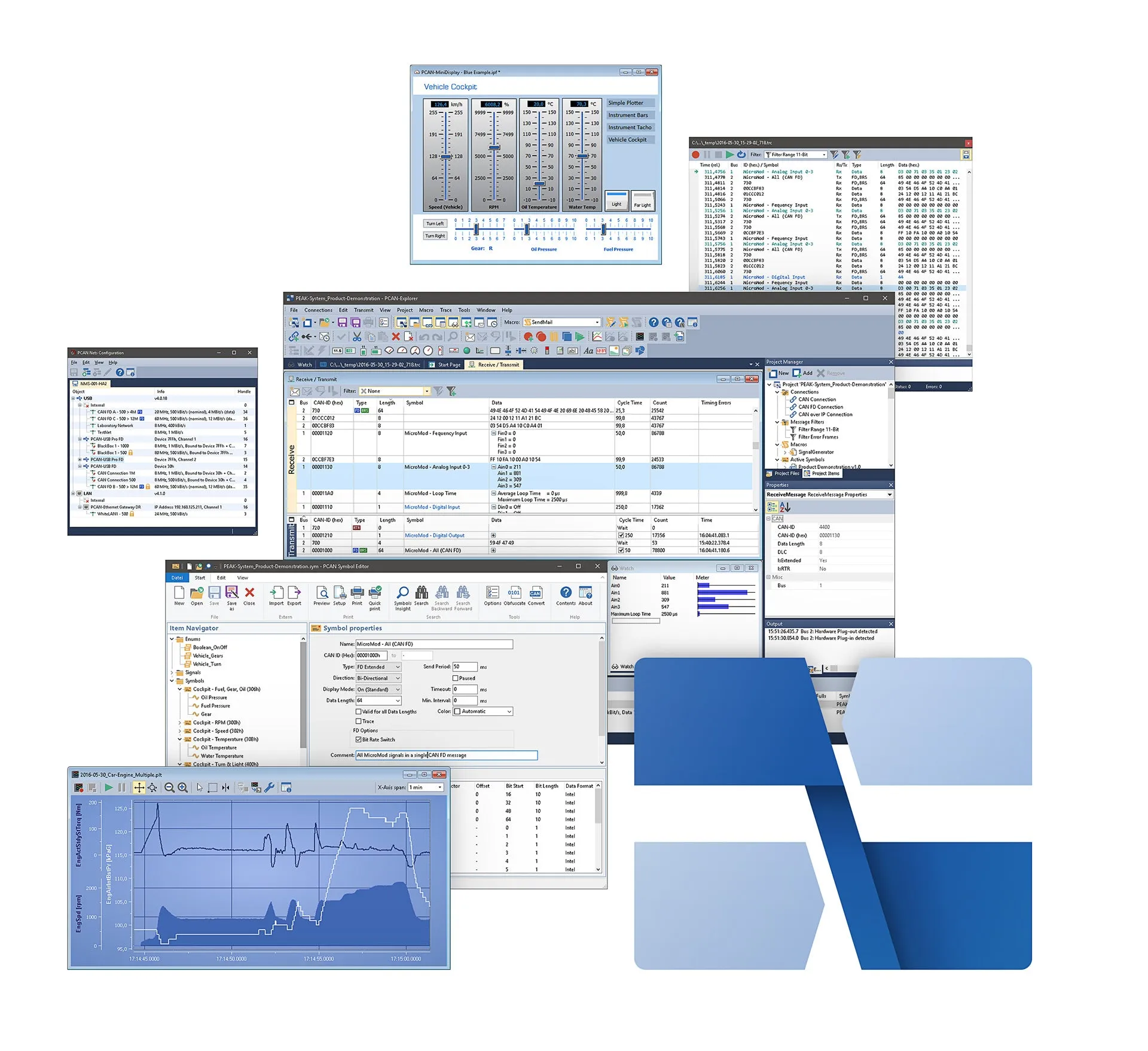

The PCAN-Explorer 6 is a professional program that operates in Windows® and enables simultaneous communication between multiple CAN and CAN FD busses.

In this version of Explorer, the user can do much more than simply monitor CAN networks. The user can now manually send messages or transmission lists, which is very beneficial for control and simulation purposes. The new and improved software allows for connections between multiple CAN interfaces that are independent of the Peak hardware interface used. A new addition is a built in trace function that can playback existing traces and record data traffic.

A main feature of this program is the symbolic representation of various CAN messages along with their payload. All hexadecimal information can be transformed into a readable, user-friendly format with the use of symbol files.

Note that the automation of complex processes can be implemented using macros. The sophisticated implementation of VBScript accesses the extensive object model used in the new software.

The PCAN Explorer 6 runs under Windows® 10, 8.1, 7 and supports all

PCAN-Explorer 6 Add-ins:

• The  add-in can live record or trace a signal’s time course and then create a graphical representation.
• The allows you to create your own arrangement of controls, switches, and displays.
• The is a data description format for CAN bus information.
• The supports any definition that is created by the standard’s parameter group.
