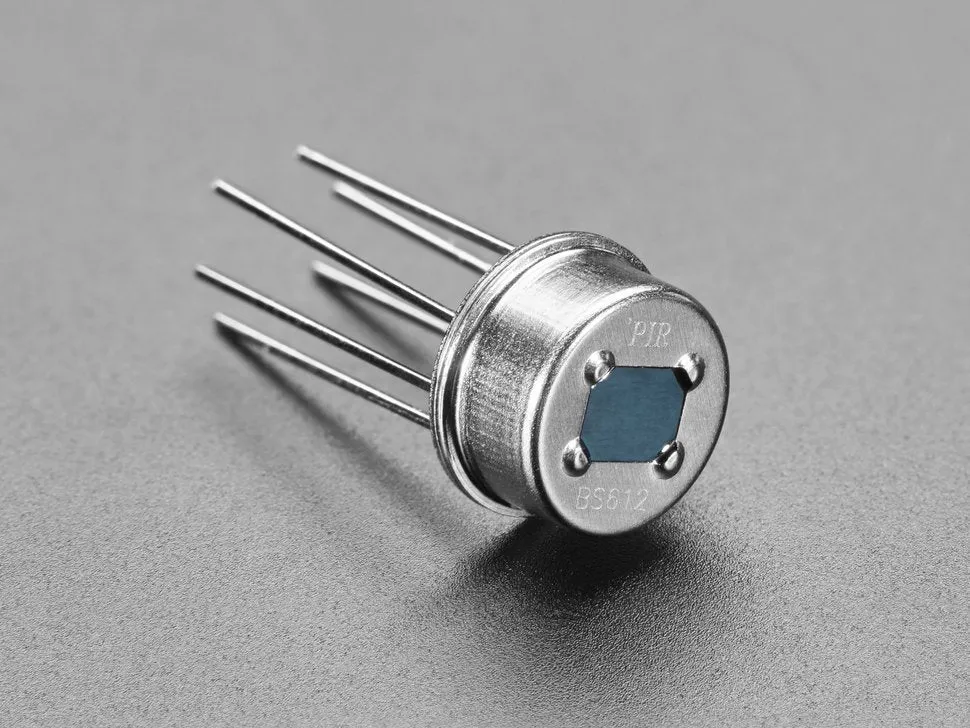

PIR sensors are used to detect motion from pets/humanoids from about 5 meters away (possibly works on zombies, not guaranteed). This sensor is much smaller than most PIR modules, which makes it great for unobtrusive projects. It's also fully contained and very configurable. After you've provided power and ground, you can use the remaining 3 pins to configure whether the sensor is enabled (OEN), how sensitive the PIR should be to motion (SENS) and how long the output is active for (ON TIME). Even though there are 6 pins, the wires are flexible and long so the sensor is breadboard or perfboard friendly.

Runs on 3.3V power - so make sure if you're interfacing with an Arduino or other 5V chip, you power it from the 3V regulator. The digital signal output is 3.3V high/low.

You can change the length of time the signal pin stays high by connecting a resistor divider to the ONTIME pin, from 2 seconds (0V) up to one hour (VDD a.k.a. 3.3V) - see the datasheet 'TIME pin voltage range center' table for recommended resistor values.

You can also change the sensitivity of the PIR element by connecting a resistor divider to the SENS pin, from 0V (most sensitive) to VDD/3.3V (least sensitive) - see the datasheet 'SENS pin voltage' table for details.

To use, see the datasheet pin-out diagram:

• Connect pin #1 (SENSE) to ground (most sensitive)
• Connect pin #4 (OEN) to 3.3V to enable the output
• Connect pin #3 (VSS) to Ground
• Connect pin #4 (VDD) to 3.3V
• Check signal on pin #5 (REL)
• Connect pin #6 (ONTIME) to ground (on time of 2 seconds)

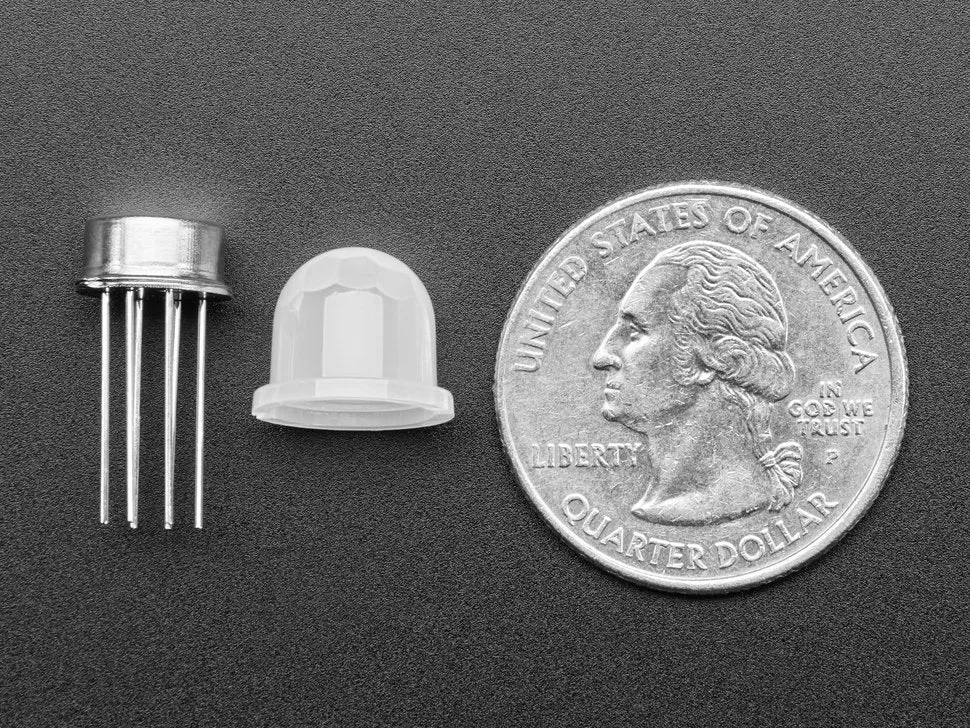

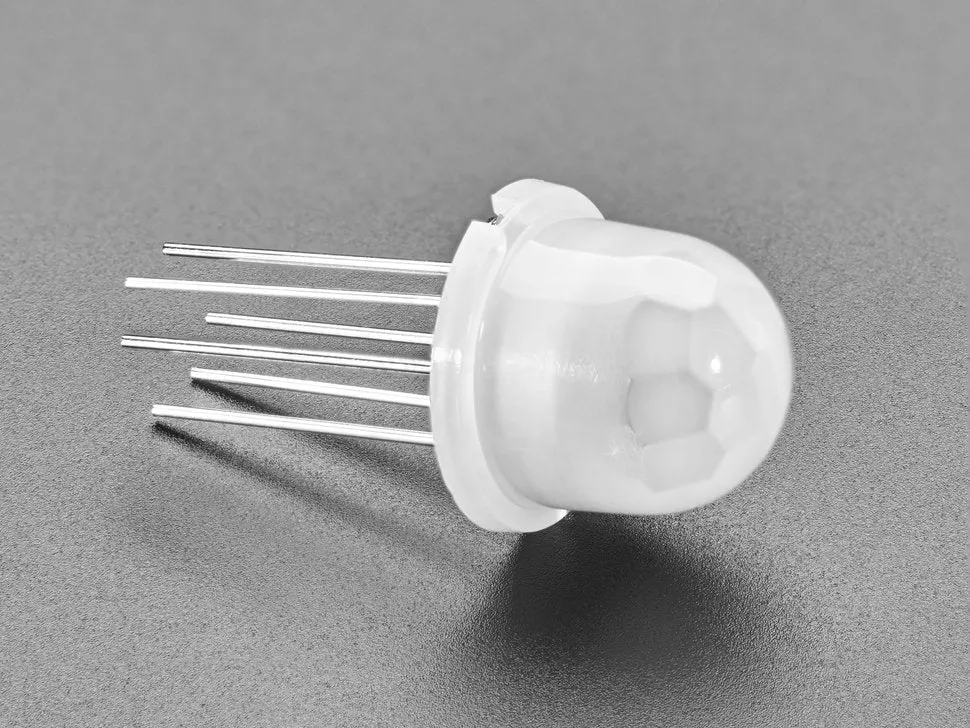

The snap-on lens is focused to 5 meters away with a 120-degree spread but should work from about 3 to 8 meters.

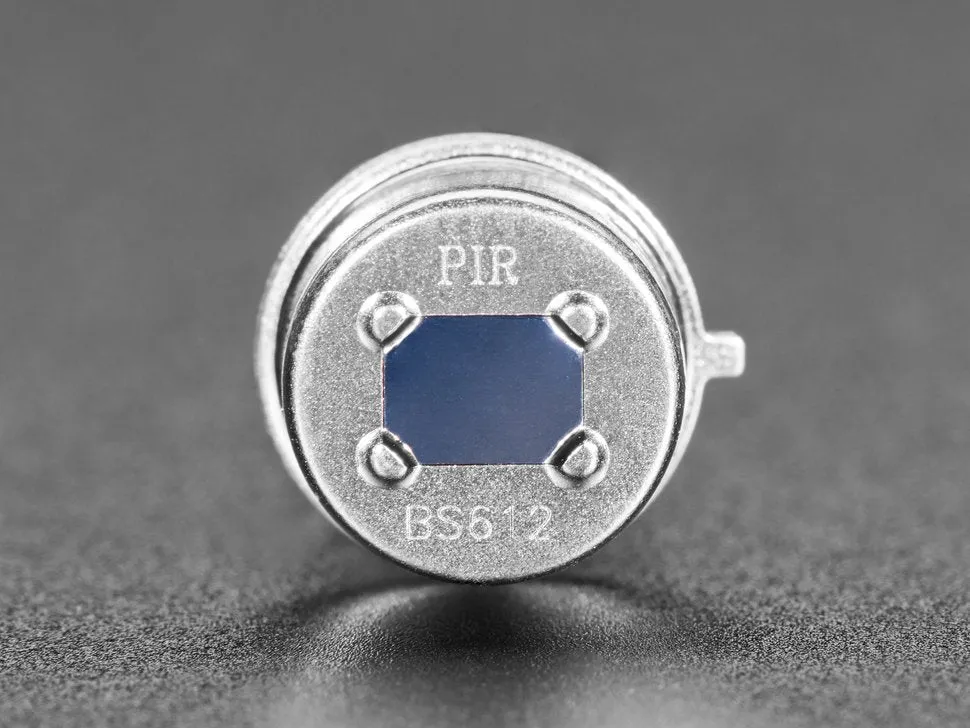

The BS sensor window is 4mm x 3mm. We also carry the  which has a larger sensing element (so it will be more sensitive) but does not have the extra configuration pins.
