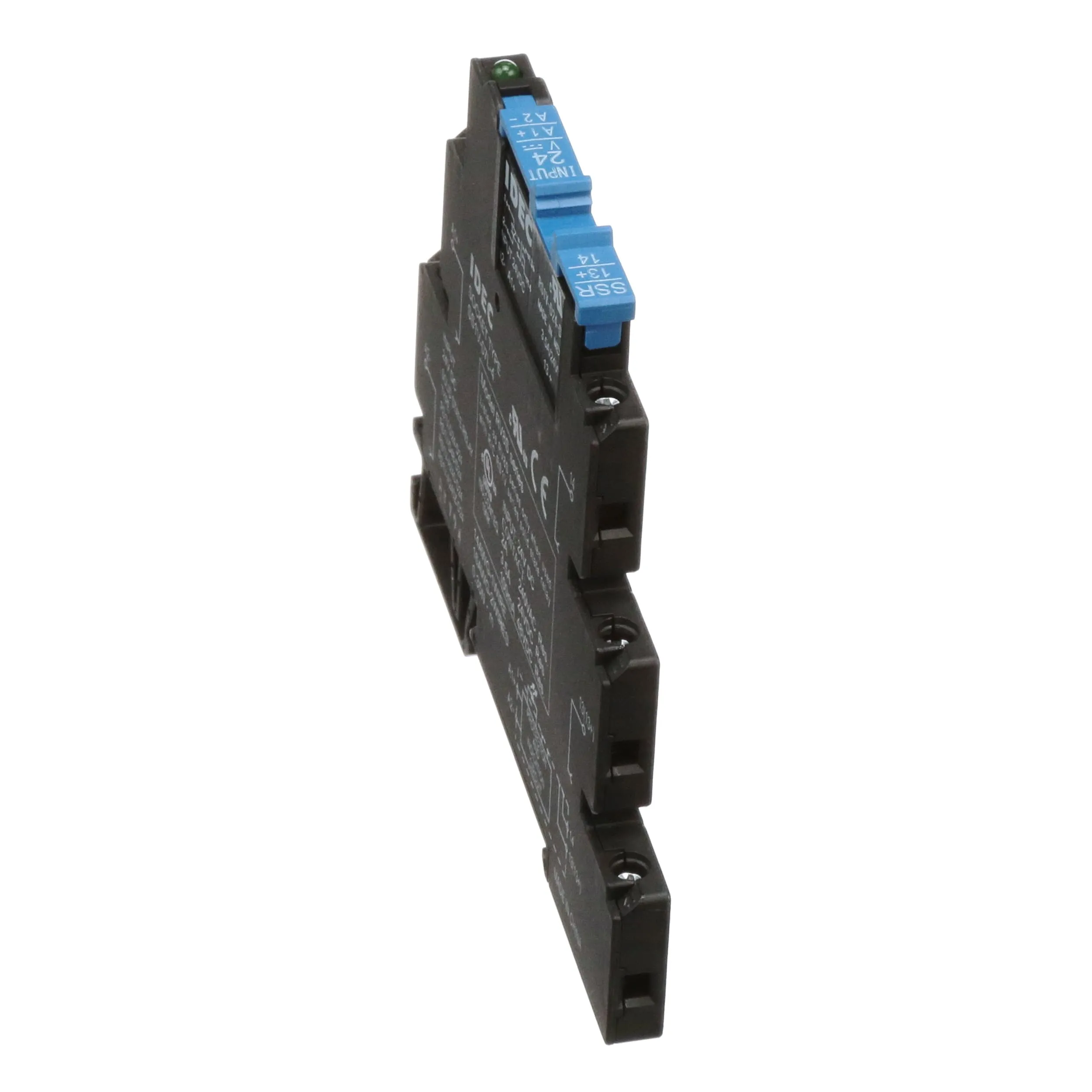

Name: IDEC Corporation RV8S-L-D24-D24
SKU: 647574

Product Details ＋

Product Attribute	Attribute Value
Application	PCL Interface
Contact Form	SPST-NO
Current Rating	3.5 A
Function	General Purpose
Mounting Type	DIN Rail
Number of Pins	4 Pin
Relay Type	Solid State Relay
Series
Termination	Screw
Voltage Rating	24 VDC
Voltage, Control	24 VDC

Overview

IDEC 6mm interface relays provide a compact solution for general purpose relay requirements. Now available with solid state models, the RV8 series Interface relays are ideal for PLC and electronic systems, industrial automation, panel builders, assembly machine applications and other applications that require a high switching capability in a compact space. The RV8 series interface relays can be used as interfaces between the controller and the actuator to switch small and medium size loads.

Class I, Division 2 and Class I, Zone 2 Hazardous Location options (electromechanical relays only)

Solid State relay versions available

Only 70mm in height from DIN rail

Gold-plated contacts (electrical mechanical relays only)

Pre-assembled relay and DIN mount socket

Universal screw terminals (flat and phillips) or spring clamp terminals

Universal AC/DC socket with built-in surge suppression and green LED

6A contact rating (electromechanical relays only)

Lever for easy locking and removal of relay

Operating temperature of -40 deg C - 70 deg C (-20 deg C - 60 deg C for SSR)

RoHS compliant
