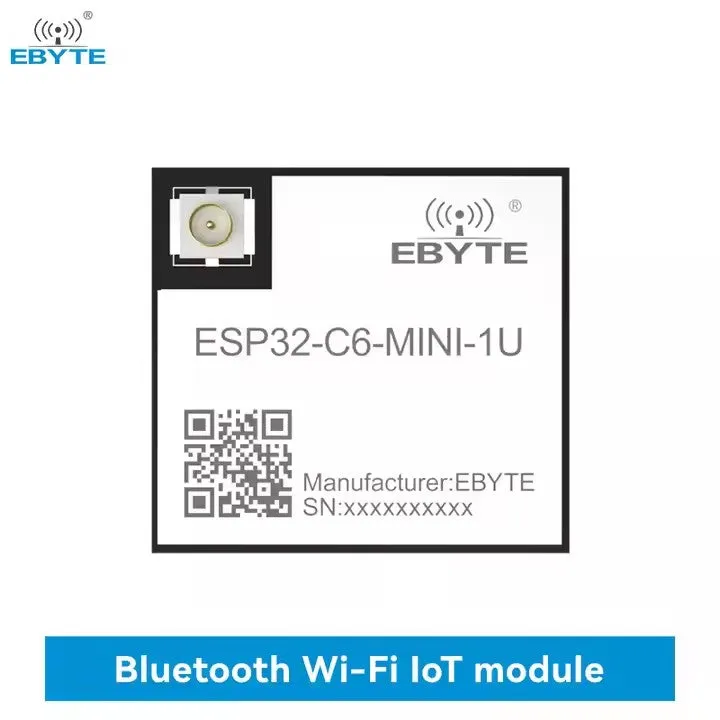

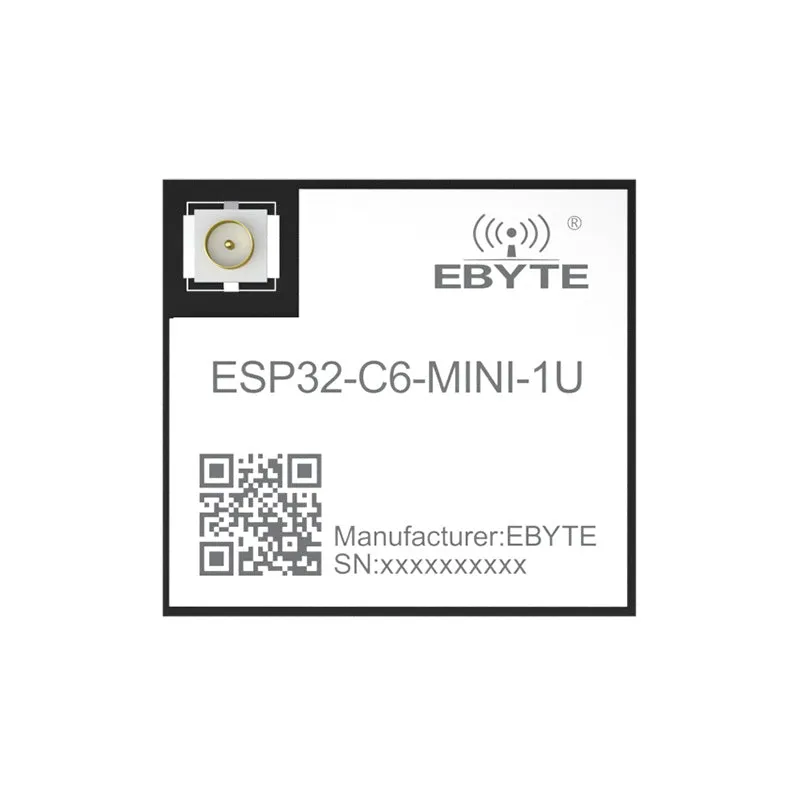

Name: Ebyte ESP32-C6-MINI-1U 2.4GHz Bluetooth Wifi IOT SoC Module 20dbm 180m WIFI6 BLE5.3 ESP32-C6 MQTT IPV6 4M Flash AT Command IPEX
SKU: 286442

Product Details ＋

ESP32-C6-MINI-1U Built-in ESP32-C6 chip solution Wi-Fi6 Low-power Ble 5.3 protocol Dual-mode Ble WiFi module

[Chip solution]：ESP32-C6

[Operating frequency]：2412~2484MHz

[Supported protocol]：IEEE 802.11ax

[Communication distance]：180m

[Interface type]：UART I/O

[Introduction]：ESP32-C6-MINI-1U is a dual-mode Bluetooth WiFi module based on the built-in ESP32-C6 series chip solution. It supports Wi-Fi 6 and low-power Bluetooth 5.3 protocols. The WiFi module is small in size and integrates a variety of peripherals, including UART, I2C, I2S, infrared remote control module, temperature sensor, and analog/digital converter. It also has single-wire, dual-wire, and four-wire SPI interfaces. This dual-mode Bluetooth WiFi module can be used in smart home, industrial automation, healthcare, consumer electronics and other fields.

Absolute Maximum Ratings

Symbol	Parameter	Min.	Max.	Unit
VDD33	Power pin voltage	–0.3	3.6	V
TSTORE	Storage temperature	–40	85	°C

Recommended working conditions

Symbol	Parameter	Min.	Typical	Max.	Unit
VDD33	Power pin voltage	3	3.3	3.6	V
IVDD	External power supply current	0.5	—	—	A
T	Recommended operating temperature	–40	—	85	°C
Humidity	Humidity	—	85	—	%RH
I	Transmit current	251	—	400	mA
	Receive current	—	78	—
	Sleep current	14	—	38

RF characteristics

Module Model		ESP32-C6-MINI-1	ESP32-C6-MINI-1U
Working channel center frequency range		2412~2484MHz	2412~2484MHz
Wi-Fi		Protocol IEEE802.11b/g/n	Protocol IEEE802.11b/g/n
Antenna Type		PCB Antenna	IPEX Antenna
distance	With Router@Mercury MW305R	200m	180m
distance	Between modules	200m	180m
