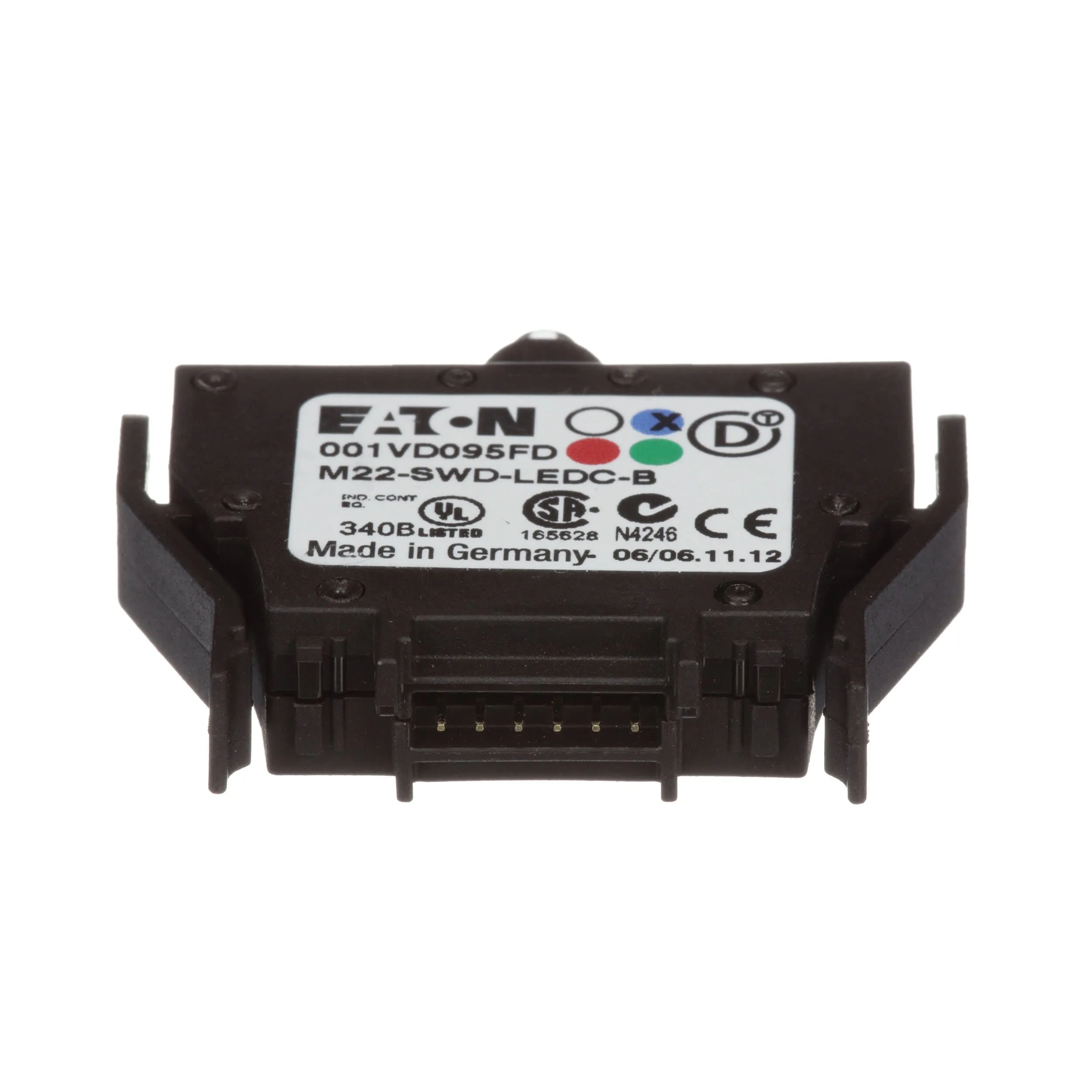

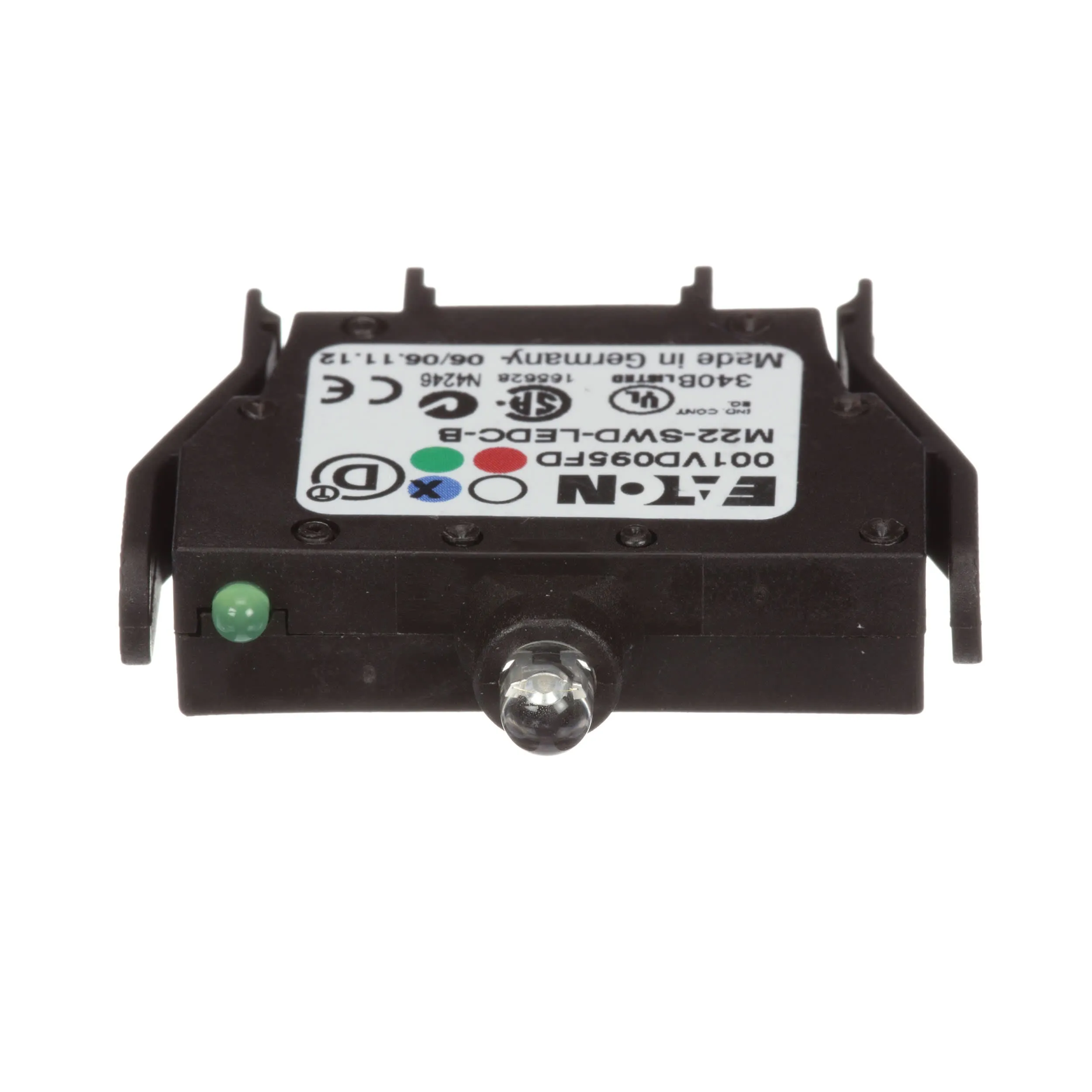

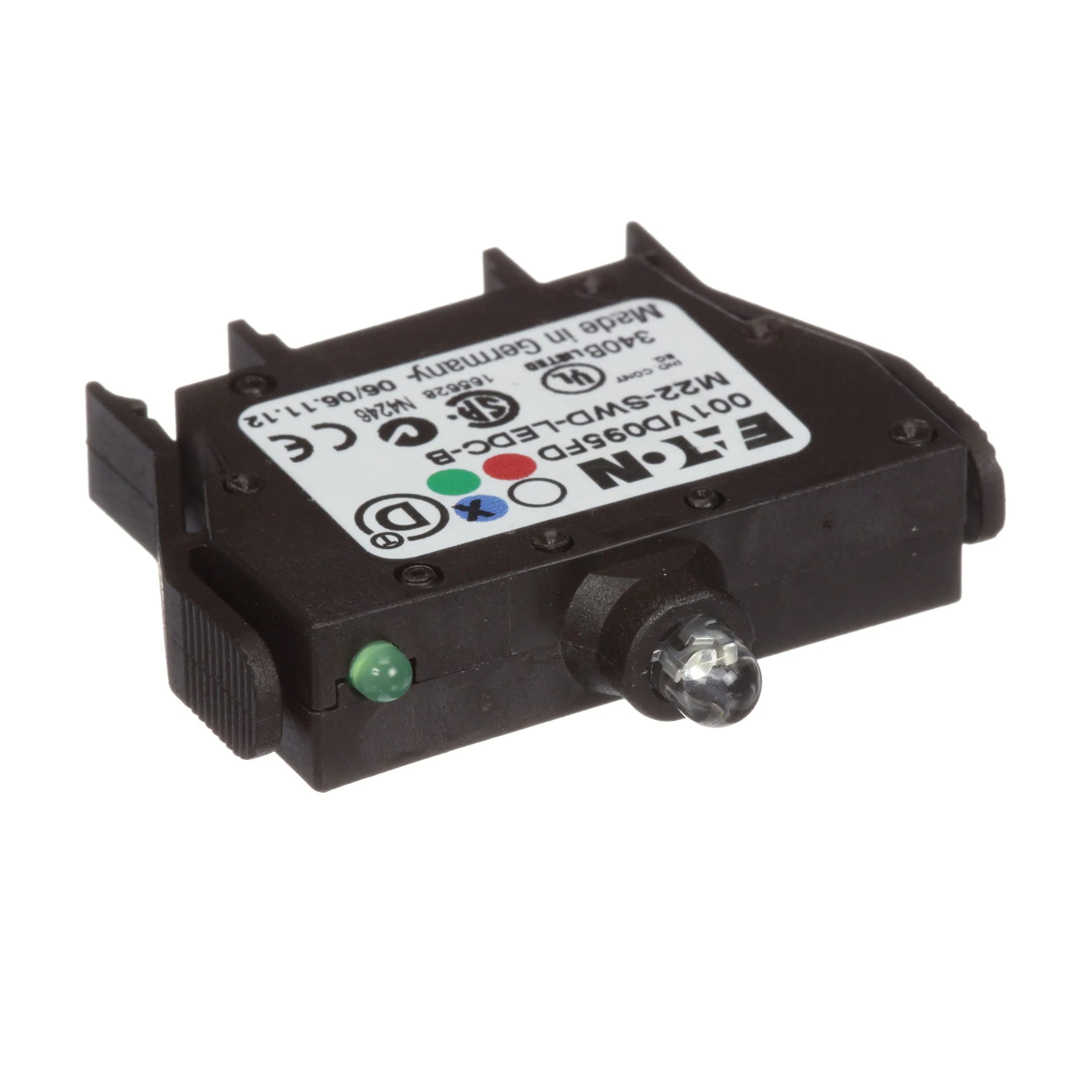

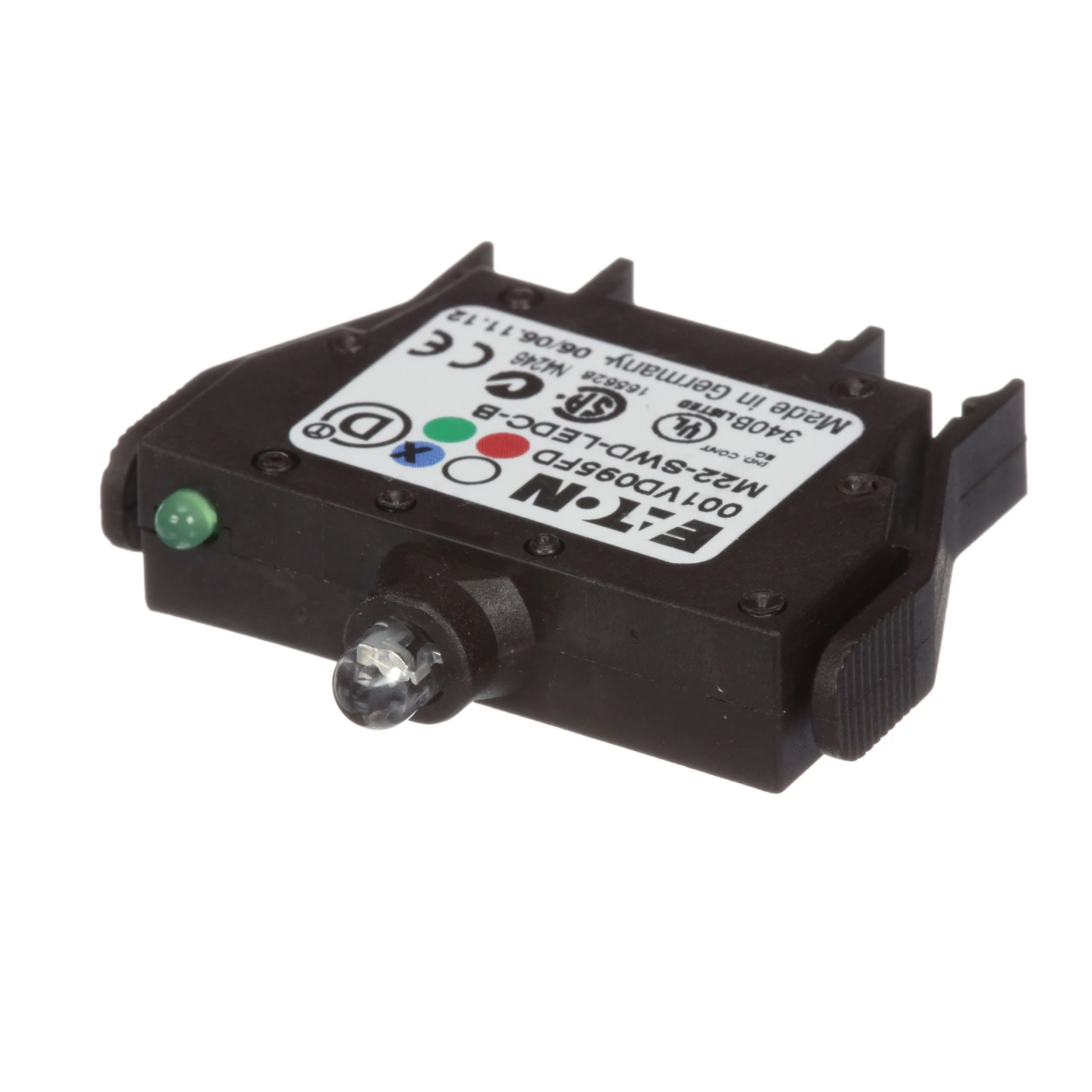

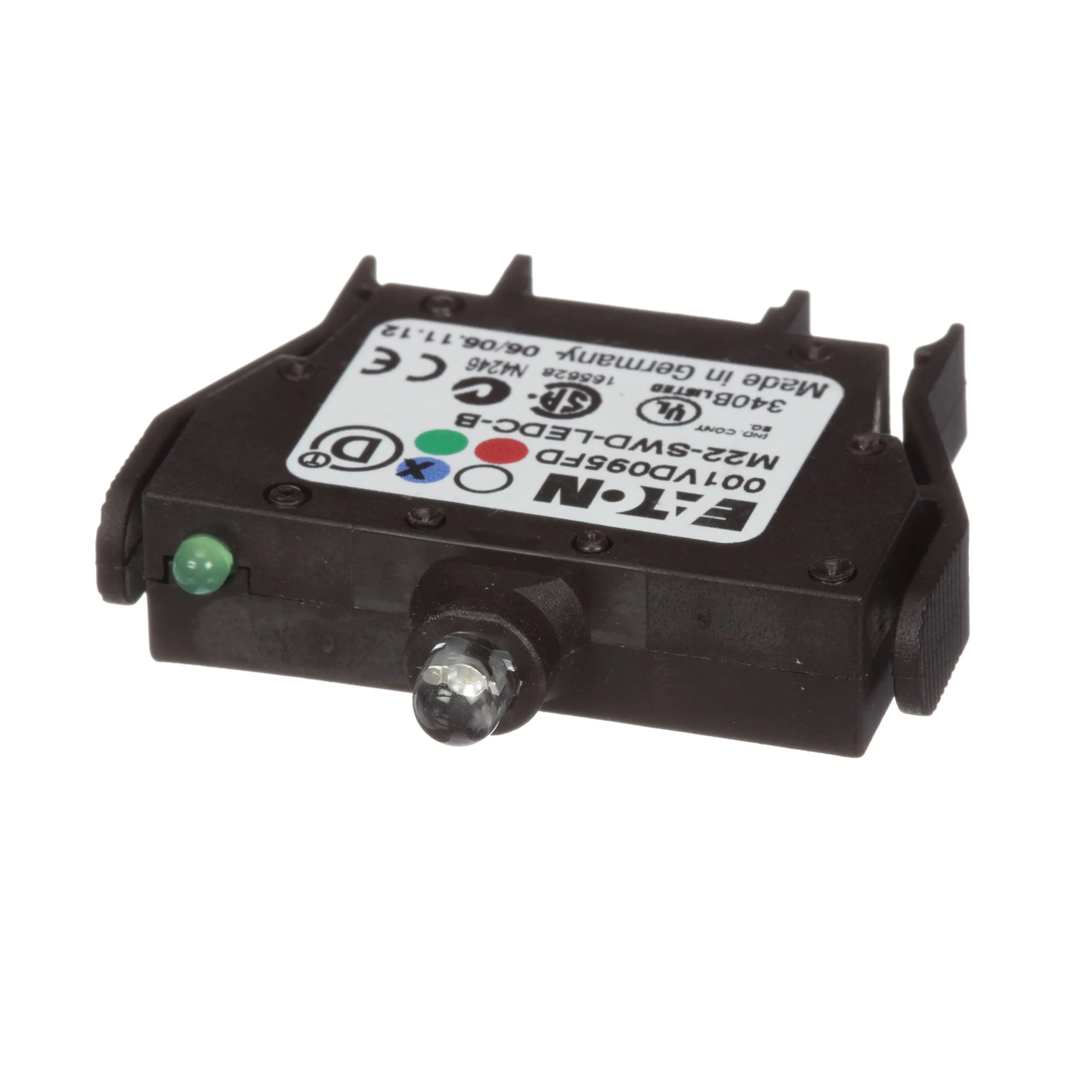

Name: Eaton - Cutler Hammer M22-SWD-LEDC-B
SKU: 422619

Product Details ＋

Product Attribute	Attribute Value
Application	Smart Wire DT Panel Wiring Solution
Approvals	UL Listed;CSA Certified
Color	Blue
Current, Supply	19 mA
Depth	0.079" (2mm)
Dimensions	45 x 10 x 42 mm
Family Name	Global Modular Family
For Use With	XV Series PLC
Height	1.25 Inch
Input Current	19 mA
Length	4.5 Inch
Maximum Operating Temperature	55 °C
Minimum Operating Temperature	-30 °C
Mounting Type	Base
Primary Type	Module
Series
Special Features	Voltage-free Contacts
Standards	IEC/EN 61131-2, EN 50178
Supply Voltage	15 VDC
Temperature Operating Range	-30 to 55 °C
Terminal Type	Quick Connect, Solder
Type	Contact Module
UPC Code	4015081157389
Voltage Rating	30
Weight	.28 Pound
Width	4.25 Inch

Overview

Eaton SmartWire-DT Series — IP20 Input / Output Modules:

For the integration of conventional actuators or sensors, various digital and analog input / output modules are available. The flexible SmartWire-DT connection technology enables placement anywhere in the control cabinet. The possibility of placing the input / output modules in the immediate vicinity of the sensors / actuators reduces the remaining wiring to a minimum.

Features:

Connection to the SmartWire-DT flat cable via device plug SWD4-8SF2-5

Simple tool-less wiring of the inputs and outputs via PUSH IN terminals

Temperature range from -25 ° C to 55 ° C

CE, UL, CSA

Automatic configuration in the SmartWire-DT network

Digital and Analog Modules:

Digital module, 8 inputs 24 V DC

Digital module, 4 inputs 24 V DC, 3 wires connection

Digital module, 4 inputs 24 V DC, 4 outputs 24 V DC 0.5 A

Digital module, 4 inputs, 2 relays 230 V 3 A

Digital module, 8 transistor outputs 24 V DC 0.5 A

Analog module, 4 inputs 0 - 10 V, 0 - 20 mA

Analog module, 2 inputs 0 - 10 V, 0 - 20 mA, 2 outputs 0 - 10 V, 0 - 20 mA
