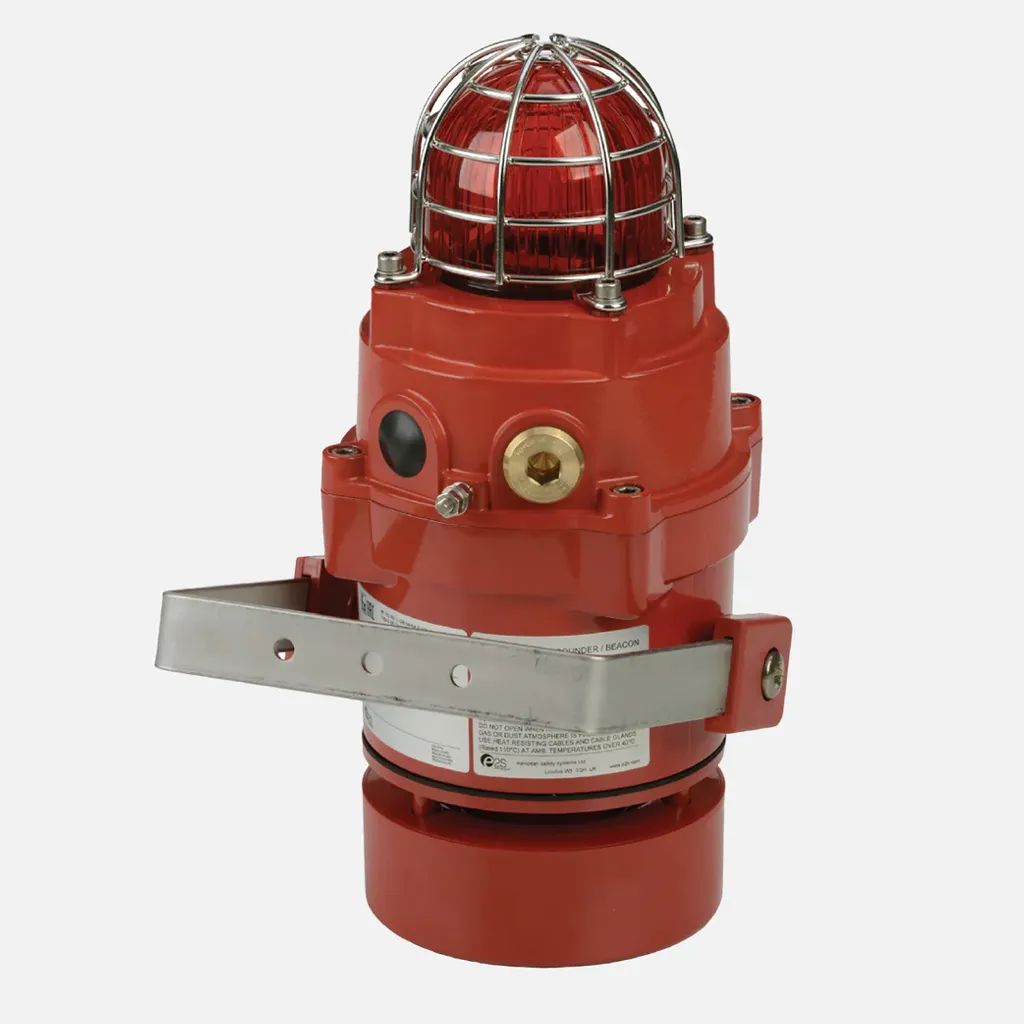

TOMAR Electronics flameproof BExCS110-05 combination alarm horn sounder and Xenon strobe beacon with omni-directional horn is suitable for Zone 1, 2, 21 & 22. Approved to IECEx, ATEX, Ex EAC and INMETRO standards.
The radial horn on the compact BExCS110-05-R distributes the audible warning signal omni-directionally allowing the visual signal to be orientated optimally. The alarm horn & Xenon beacon may be connected from a single power supply for simultaneous operation or from separate supplies for independent operation. The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminum with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.
Key Features
- Omni-directional sound output.
- Marine grade, corrosion proof, LM6 aluminum enclosure
- Automatic synchronization on multi-beacon & sounder systems.
- Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
- Xenon tubes mechanically secured against shock & vibration
- Very large termination area.
- Dual M20 cable entries – adapters available.
- Stopping plug included.
- Ratchet adjustable stainless steel ‘U’ bracket.
- Reverse polarity diode fitted.
- IP66/67 ingress protection.
- 120 candela effective light intensity.
- UV stable PC, field replaceable, color lens filters.
Models
| Alarm Sounder | Xenon Beacon | |||
| Model | Voltage | Current | Voltage | Current |
| BExCS110-012-(lens color) | 12 VDC /- 25% | 195mA | 10-14 VDC | 750mA |
| BExCS110-024-(lens color) | 24 VDC /-25% | 265mA | 20-28 VDC | 300mA |
| BExCS110-048-(lens color) | 48 VDC /-25% | 130mA | 42-54 VDC | 180mA |
| BExCS110-115-(lens color) | 115 VAC /-10% 50Hz/60Hz | 110mA | /- 10% | 140mA |
| BExCS110-230-(lens color) | 230 VAC /-10% 50Hz/60Hz | 56mA | /- 10% | 55mA |
Specs
Sounder/Horn Specs
- Maximum output: 115dB (A) @ 1 meter [106dB(A) @ 10ft/3m]
- Nominal output: 110dB (A) @ 1m /- 3dB – Tone 2 [101dB (A) @ 10ft/3m]
- No. of tones: 32 (UKOOA / PFEER compliant)
- No. of stages: 3
- Volume control:
- Max. 110dB (A);
- Min. 72dB (A) – Tone 2
- Effective range: 100m/328ft @ 1 KHz
- Voltages:
- DC: 12VDC; 24VDC; 48VDC
- Voltages AC: 115VAC; 230VAC
- Stage switching: Negative or positive
Beacon Specs
- Energy: 5 Joules (5Ws)
- Flash rate: 1Hz (60 fpm)
- Peak Candela: 500,000 cd – calculated from energy (J)
- Eff. Intensity: 250 cd – calculated from energy (J)
- Peak Candela: 39,463 cd* – measured ref. to I.E.S.
- Eff. Intensity: 120 cd* – measured ref. to I.E.S.

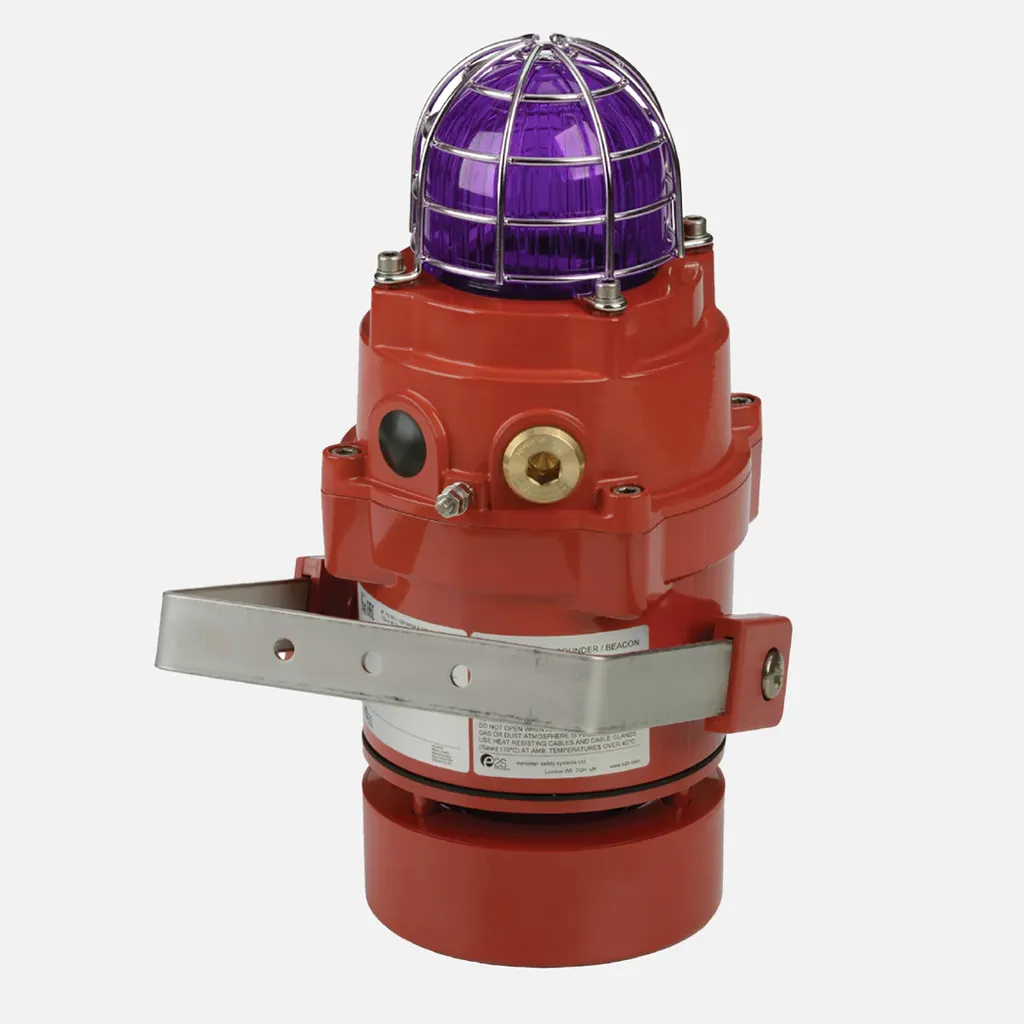

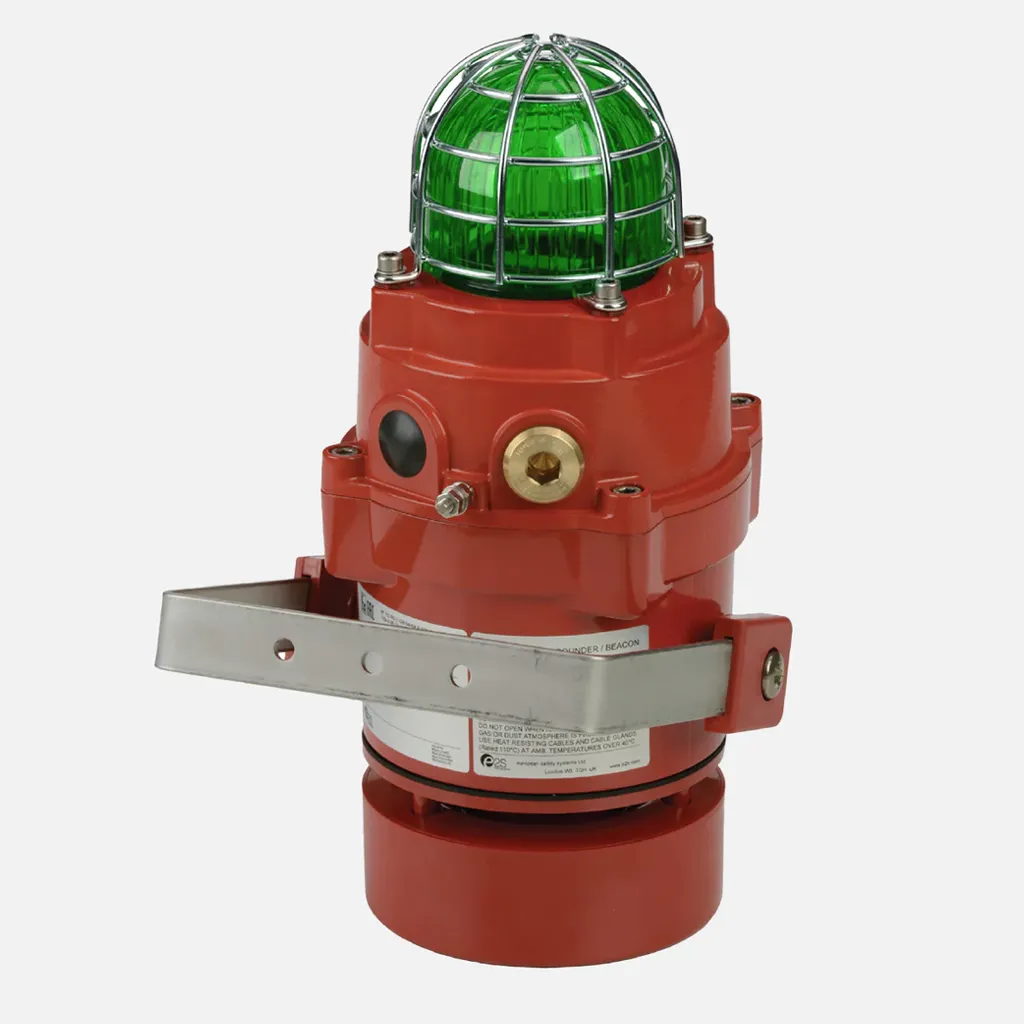

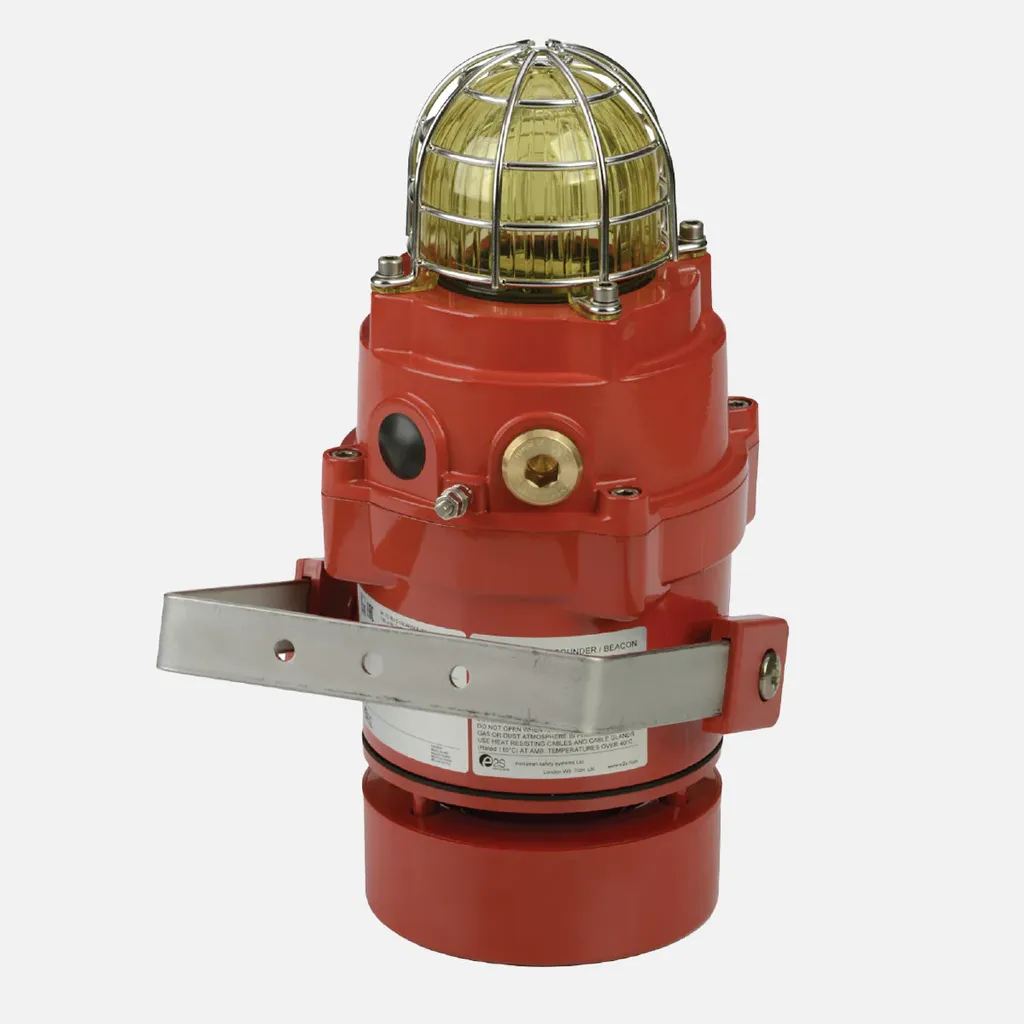

- Lens colors: Amber, Blue, Clear, Green, Magenta, Red & Yellow
- Tube life: Emissions are reduced to 70% after 8 million flashes

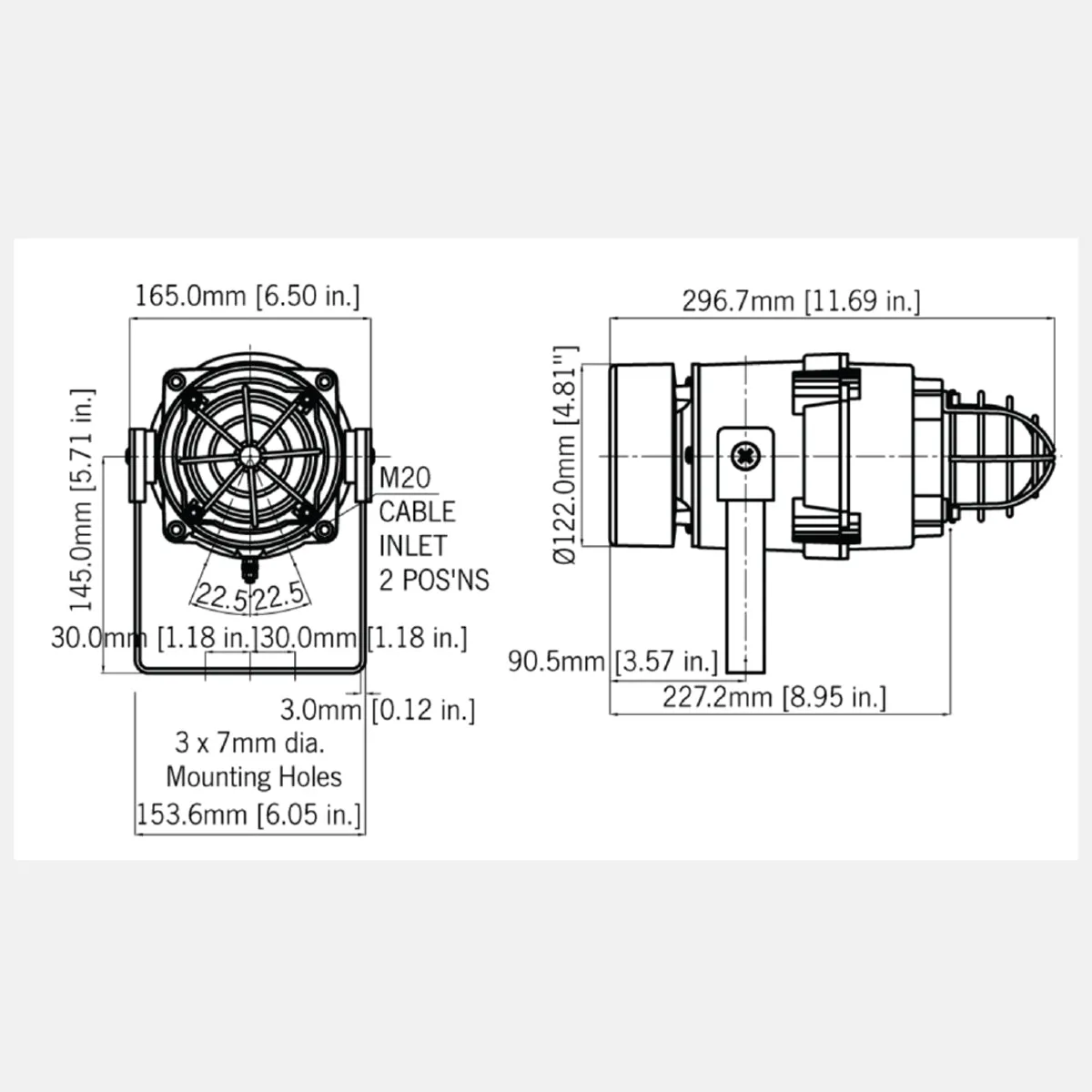

General Specs
- Ingress protection: IP66/67
- Enclosure material: Marine grade copper free LM6 Aluminum
- Enclosure finish: Chromate & powder coated
- Horn material: High impact UL94 V0 & 5VA FR ABS (Red)
- Cable entries: Dual M20 ISO (one stopping plug incl.)
- Terminals: 0.5 – 2.5mm² (20-14 AWG)
- Enclosure volume: <2 liters
- Line monitoring: Blocking diode included
- EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
- Temperature range: -50° to 70°C (-58°F to 158°F)
- Relative humidity: 90% at 20°C [68°F]
- Weight DC: 4.80kg/10.56Ibs AC: 5.00kg/11Ibs
- SPL data /-3dB (A), Candela with clear lens – at optimum voltage
Approvals and Coding
- Approvals:
- IECEx KEM 10.0002X
- IEC 60079-0
- IEC 60079-1
- IEC 60079-31 (2011)
- IEC 60079-2007-4
- IEC 60079-2013
- ATEX KEMA 00ATEX2006X
- EN 60079-0
- EN 60079-1
- EN 60079-31 (2012 A11)
- EN 60079-2007
- EN 60079-2014
- TR-CU Ex EAC certificate RU C-GB.AA71.B.00109
- Coding:
- II 2G Ex d IIB T5 Gb Ta. -50°C to 50°C
- II 2G Ex d IIB T4 Gb Ta. -50°C to 70°C
- II 2D Ex tb IIIC T70°C Db Ta. -50°C to 40°C
- II 2D Ex tb IIIC T85°C Db Ta. -50°C to 55°C
- II 2D Ex tb IIIC T100°C Db Ta. -50°C to 70°C
Tone Table
| Stage 1 | WAV file | Frequency Description | Stage 2 | Stage 3 |
|---|---|---|---|---|
| T 1 | Continuous 1000Hz Toxic Gas Alarm | T 31 | T 11 | |
| T 2 | Alternating 800/1000Hz at 0.25s intervals | T 17 | T 5 | |
| T 3 | Slow Whoop 500/1200Hz at 0.3Hz with 0.5s gap repeated | T 2 | T 5 | |
| T 4 | Sweeping 800/1000 at 1Hz | T 6 | T 5 | |
| T 5 | Continuous at 2400Hz | T 3 | T 27 | |
| T 6 | Sweeping 2400/2900Hz at 7Hz | T 7 | T 5 | |
| T 7 | Sweeping 2400/2900Hz at 1Hz | T 10 | T 5 | |
| T 8 | Siren 500/1200/500Hz at 0.3Hz | T 2 | T 5 | |
| T 9 | Sawtooth 1200/500Hz at 1Hz | T 15 | T 2 | |
| T 10 | Alternating 2400/2900Hz at 2Hz | T 7 | T 5 | |
| T 11 | Intermittent 1000Hz at 0.5Hz General alarm | T 31 | T 1 | |
| T 12 | Alternating 800/1000Hz at 0.875Hz | T 4 | T 5 | |
| T 13 | Intermittent 2400Hz at 1Hz | T 15 | T 5 | |
| T 14 | Intermittent 800Hz 0.25s on 1s off | T 4 | T 5 | |
| T 15 | Continuous at 800Hz | T 2 | T 5 | |
| T 16 | Intermittent 660Hz 150mS on, 150mS off | T 18 | T 5 | |
| T 17 | Alternating 544Hz (100mS)/440Hz(400mS) | T 2 | T 27 | |
| T 18 | Intermittent 660Hz 1.8s on, 1.8s off | T 2 | T 5 | |
| T 19 | 1400Hz to 1600Hz sweep up over 1s -1600Hz to 1400Hz sweep down over 0.5s | T 2 | T 5 | |
| T 20 | Continuous 660Hz | T 2 | T 5 | |
| T 21 | Alternating 554/440Hz at 1Hz | T 2 | T 5 | |
| T 22 | Intermittent 554Hz at 0.875Hz | T 2 | T 5 | |
| T 23 | 800Hz pulsing at 2Hz | T 6 | T 5 | |
| T 24 | Sweeping 800/1000Hz at 50Hz | T 29 | T 5 | |
| T 25 | Sweeping 2400/2900Hz at 50Hz | T 29 | T 5 | |
| T 26 | Simulated bell sound | T 2 | T 1 | |
| T 27 | Continuous 554Hz | T 26 | T 5 | |
| T 28 | Continuous 440Hz | T 2 | T 5 | |
| T 29 | Sweeping 800/1000Hz at 7Hz | T 7 | T 5 | |
| T 30 | 420Hz repeating 0.625s on, 0.625s off Australian alert signal | T 32 | T 5 | |
| T 31 | 1200/500Hz at 1 Hz Prepare to Abandon Platform | T 11 | T 1 | |
| T 32 | Sweeping 500/1200Hz 3.75s on, 0.25s off 15Hz | T 26 | T 1 | |
| Country specific or custom tone configurations and alarm frequencies are available upon request. | ||||
